Start here

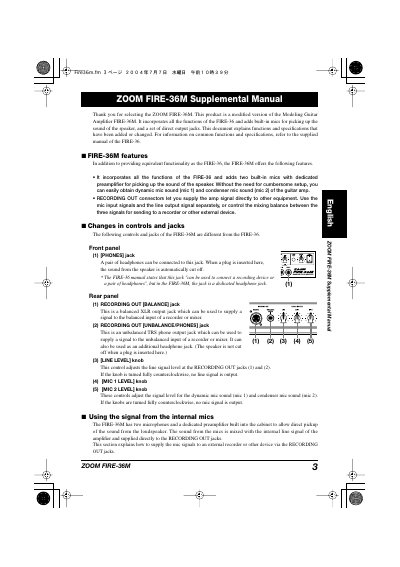

ZOOM FIRE-36M Supplemental Manual
User Manual 2 pages · 490 KB · EN
The ZOOM FIRE-36M is a modified version of the FIRE-36 Modeling Guitar Amplifier. It incorporates all functions of the original model while adding two built-in microphones with a dedicated preamplifier to capture speaker sound, along with a set of direct output jacks. This document explains the specific functions and specifications added or changed in the FIRE-36M, directing users to the supplied FIRE-36 manual for common functions.
Read onlineZOOM FIRE-36M specifications
| Microphone type | 2 x Omnidirectional condenser microphones |
|---|---|
| Headphone output | Standard stereo phone jack |
| Headphone output power | 80 mW into 32-ohm load |
| Balanced output connector | XLR-3-32 jack |
| Balanced output level | +4dBm with output load impedance 10 kilohms or more |
| Unbalanced output connector | Standard stereo phone jack |
| Unbalanced output level | +4dBm with output load impedance 10 kilohms or more |
All ZOOM FIRE-36M documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What are the new features of the FIRE-36M compared to the FIRE-36?
The FIRE-36M adds two built-in mics with a dedicated preamplifier and a set of direct output jacks.
What happens when a plug is inserted into the [PHONES] jack?
The sound from the speaker is automatically cut off.
