TOIREX USP-2B01 Manual(2)
User Manual

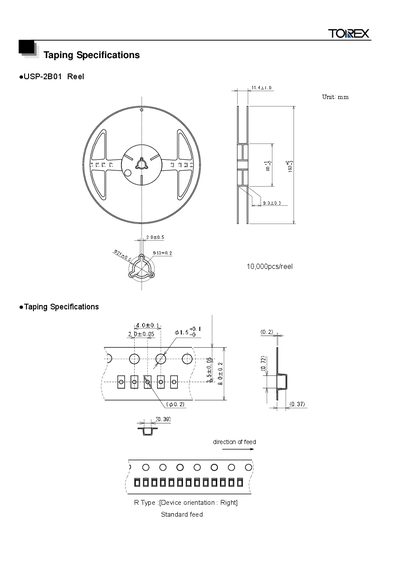

This document describes the taping specifications of USP-2B01 Reel, including unit dimensions, quantity per reel, device orientation, and standard feed direction.
Read onlineTOIREX USP-2B01 specifications
| Board dimensions | 114.3 mm × 76.2 mm |
|---|---|
| Copper trace area | 74.2 mm × 74.2 mm |
| Board material | Glass Epoxy (FR‑4) |
| Board thickness | 1.6 mm |
| Maximum junction temperature (Tjmax) | 125 °C |
All TOIREX USP-2B01 documents by type
User Manual 3
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What measurement conditions were used for the power‑dissipation data?
The device was mounted on a board (114.3 mm × 76.2 mm, FR‑4, 1.6 mm thick) with copper traces covering 74.2 mm × 74.2 mm, using lead‑free soldering and natural convection cooling.
What is the maximum junction temperature (Tjmax) for the USP‑2B01?
The maximum junction temperature is 125 °C.
What is the maximum junction temperature specified for the USP-2B01?
The maximum junction temperature (Tjmax) is 125 °C.
