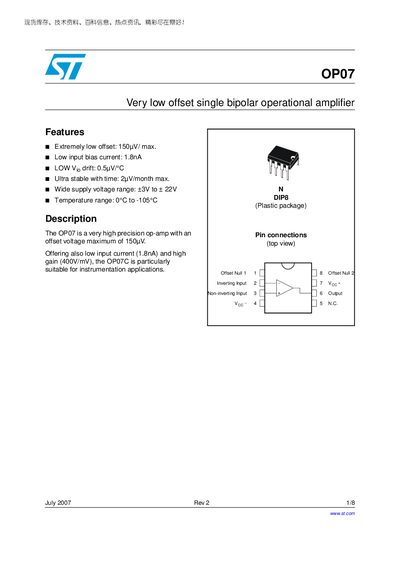

STMicroelectronics OP07 Operational Amplifier Datasheet
The OP07 operational amplifier offers an extremely low offset voltage (150 µV max) and a very low input bias current (1.8 nA), making it suitable for precision instrumentation. It operates from a wide supply range of +3 V to +22 V and functions over an operating temperature range of –40 °C to +105 °C.
The document provides absolute maximum ratings, electrical characteristics such as gain‑bandwidth product (0.5 MHz) and supply current (5 mA no‑load), mechanical dimensions for the DIP8 plastic package, ordering codes, and legal notices. All data are presented for designers and engineers needing detailed device information.
STMicroelectronics OP07 specifications
| Maximum offset voltage | 150 µV |
|---|---|
| Input bias current | 1.8 nA |
| Supply voltage range | +3 V to +22 V |
| No‑load supply current | 5 mA |
| Package type | DIP8 plastic |
Source: STMicroelectronics OP07 Operational Amplifier Datasheet
All STMicroelectronics OP07 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the OP07?
The OP07 can tolerate a supply voltage up to +22 V.
From: STMicroelectronics OP07 Operational Amplifier Datasheet
What package is the OP07 offered in?
The device is supplied in a DIP8 plastic package.
From: STMicroelectronics OP07 Operational Amplifier Datasheet
What is the maximum supply voltage for the OP07?
The OP07 can be powered up to +22 V.
From: STMicroelectronics OP07 Operational Amplifier Handbook
What is the input bias current of the OP07?
The input bias current is 1.8 nA.
From: STMicroelectronics OP07 Operational Amplifier Handbook
