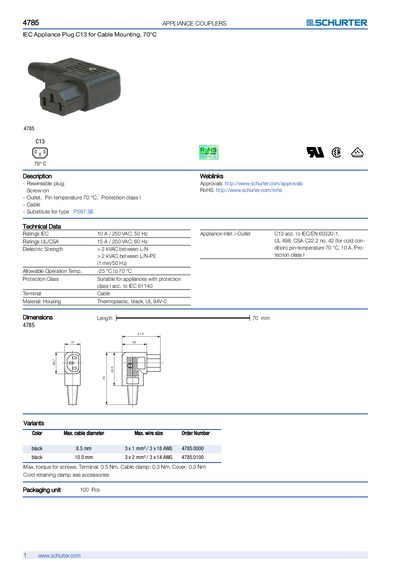

SCHURTER 4785 Appliance Plug C13 Manual
Datasheet 1 pages · 130 KB · EN
The SCHURTER 4785 is an IEC appliance plug type C13 designed for cable mounting with a pin temperature rating of 70 °C. It complies with IEC 60320‑1, UL 498 and CSA standards and is suitable for appliances with protection class according to IEC 61140.
The document lists the plug's electrical ratings, dielectric strength, operating temperature range, torque specifications, dimensions, and variant options for cable diameter and wire size. It also includes packaging information and reference links for approvals and RoHS compliance.
SCHURTER C13 specifications
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 15 A / 250 VAC, 60 Hz |
| Dielectric Strength | > 2 kVAC between L‑N and L/N‑PE (1 min/50 Hz) |
| Operating Temperature | -25 °C to 70 °C |
| Pin Temperature | 70 °C |
| Maximum Screw Torque | Terminal 0.5 Nm, Cable clamp 0.3 Nm, Cover 0.3 Nm |
| Length | 70 mm |
| Maximum Cable Diameter (variant) | 8.5 mm |
All SCHURTER C13 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the IEC electrical ratings for the SCHURTER 4785 plug?
The IEC rating is 10 A at 250 VAC, 50 Hz.
What is the allowed operating temperature range?
The plug can operate from –25 °C up to 70 °C.
