Key facts
- Brand
- SCHURTER
- Model
- GSF2
- Category
- AC-DC Power
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-11
Start here

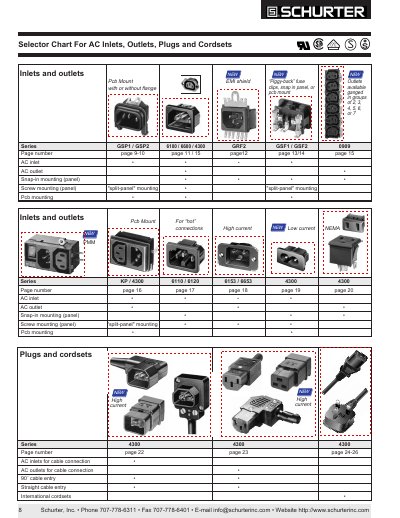

Schurter AC Inlets, Outlets, Plugs and Cordsets Selector Chart
This document provides a selection guide for Schurter AC power entry devices, including inlets, outlets, plugs and cordsets. It lists the available series, mounting options, protection classes and key technical data to help designers choose the right part.
The chart shows specifications such as current rating, material, terminal dimensions, power dissipation and certification details (UL, CSA, VDE). Order numbers and standard references are also included for each variant.
SCHURTER GSF2 specifications
| Current rating | 15A/250V |
|---|---|
| Protection Class | I |
| Material | temperature resistant thermoplastic UL 94V-O |
| Max power dissipation | 3.15 W (1‑pole) / 2.5 W (2‑pole) |
| Mounting options | Screw mount, snap‑in mount |
Source: Schurter AC Inlets, Outlets, Plugs and Cordsets Selector Chart
All SCHURTER GSF2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What current rating do the AC inlets support?
The inlets are rated for 15 A at 250 V.
From: Schurter AC Inlets, Outlets, Plugs and Cordsets Selector Chart
What material are the inlets made of?
They are made of a temperature‑resistant thermoplastic qualified as UL 94V‑O.
From: Schurter AC Inlets, Outlets, Plugs and Cordsets Selector Chart
What are the IEC ratings of the GSF2?
The GSF2 is rated 10 A at 250 VAC, 50 Hz for IEC.
From: SCHURTER GSF2 Power Entry Modules without Line Filter C14/C18 1-/2-Pole Fuseholder Data Sheet
What fuse size does the fuseholder accept?
The fuseholder accepts 5 x 20 mm fuse-links.
From: SCHURTER GSF2 Power Entry Modules without Line Filter C14/C18 1-/2-Pole Fuseholder Data Sheet
