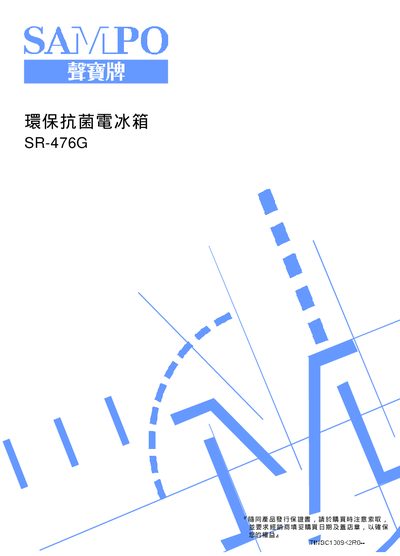

This is the user manual of the SR-476G refrigerator. It includes safety instructions, installation instructions, operating instructions, and emergency handling methods.
This owner’s manual covers safe usage of the Sampo SR‑476G refrigerator, including grounding requirements, placement guidelines, and precautions when handling the appliance. It also explains the built‑in deodorization system and how to maintain the water tank and interior components.
Installation steps, accessory assembly, regular cleaning procedures, and detailed troubleshooting tips are provided, along with full technical specifications such as voltage, power consumption, and storage capacities. This manual is written in Chinese.
| Rated voltage | 110 V |
|---|---|
| Rated frequency | 60 Hz |
| Motor power consumption | 141 W |
| Heater power consumption | 130 W |
| Total internal volume | 470 L |
| Freezer / Refrigerator volume | 125 L / 345 L |
| Monthly power consumption | 65 kWh |
| Energy efficiency | 8.75 L/kWh |
| Refrigerant type | R‑134a |
| Refrigerant charge | 140 g |
| Product weight | 80 kg |
Connect the grounding wire to the dedicated grounding screw on the left side of the back of the water tank.
The freezer can reach -12 °C for the 4‑star rating, -15 °C for 3‑star, and -18 °C for 2‑star and 4‑star ratings.
The water tank should be cleaned regularly, about once every one to two months, to prevent odor and bacterial growth.
