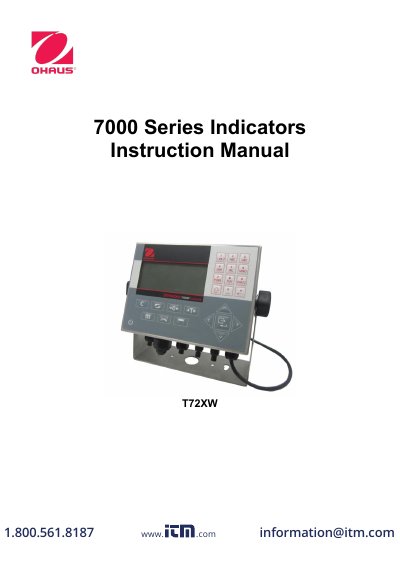

7000 Series Indicators Instruction Manual
The OHAUS T72XW industrial scale terminal is a compact, rugged stainless steel device designed for stationary weighing applications in industrial environments. It supports various load cells, offers a large backlit graphic LCD display, and includes features such as secure data memory, multiple communication interfaces (serial, USB, Ethernet), and configurable units of measure. The terminal is powered by 85–264 V AC and complies with various weights and measures standards including NTEP and OIML.
Read onlineOhaus 7000 Series specifications
| Power Source | AC power or battery |
|---|---|
| Battery Charge Time | 12 hours |
| Low Battery Warning | [lo.bat ] |
All Ohaus 7000 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Who can replace the battery?
The battery must be replaced only by an authorized Ohaus service dealer.
What happens when the battery is low?
The scale will display [lo.bat ] and then shut off.
What is the operating temperature range for the T72XW terminal?
The terminal can be operated at temperatures ranging from -10° to 40° C (14° to 104° F).
How many load cells does the T72XW support?
It supports one analog load cell platform with up to ten 350-ohm load cells.
What tools are required for servicing the scale?
The service shop should contain standard hand tools, a Digital Voltmeter (DVM), a Standard Electronics tool kit, a Grounding mat and clip, and a Strain Gauge Simulator.
How long should the battery be charged before use?
The battery must be allowed to charge for 12 hours before using the scale on battery power.
