Start here

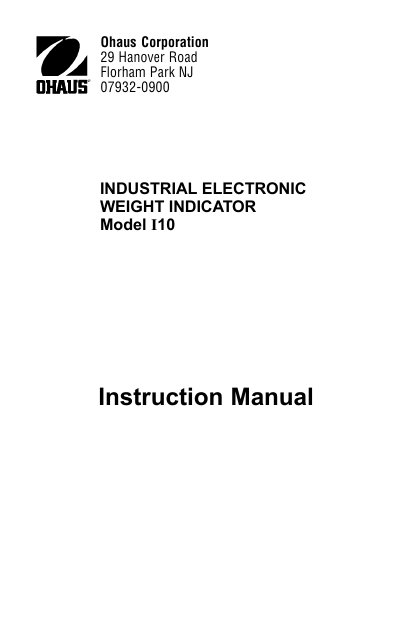

Ohaus I10 Industrial Electronic Weight Indicator Instruction Manual
The Ohaus Model I10 is a software-controlled industrial electronic weight indicator featuring user-programmable capabilities. This instruction manual covers the complete lifecycle of the device, from unpacking and assembly to advanced programming and calibration procedures.
The document details how to install the unit, connect load receivers via terminal blocks or RS232 interfaces, and configure various settings such as legal-for-trade parameters, auto-zero tracking, and custom units. It also provides specific steps for calibrating the device using gain jumpers and linearization switches, along with troubleshooting guides and a list of replacement parts.
Ohaus I10 specifications
| Capacity (lb/kg) | to 199,999* |
|---|---|
| Graduation (readability) | 0.00001 to 50* |
| Displayed resolution | 1:10,000 LFT or 1:40,000 maximum* |
| Weighing modes | lb, kg, custom unit, parts counting |
| Operating temperature | 32° to 104°F/0° to 40°C |
| Load cell excitation voltage | 5 V dc |
Source: Ohaus I10 Industrial Electronic Weight Indicator Instruction Manual
All Ohaus I10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the power requirements for the I10?
The device can be powered by an AC adapter (100, 120, 220, or 240 V ac) or six alkaline 'C' batteries.
From: Ohaus I10 Industrial Electronic Weight Indicator Instruction Manual
What is the stabilization time for the I10?
The stabilization time for the indicator is 3 seconds.
From: Ohaus I10 Industrial Electronic Weight Indicator Instruction Manual
