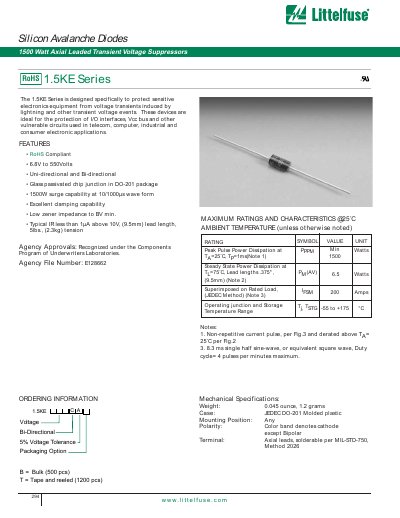

Littelfuse 1.5KE Series Silicon Avalanche Diode Datasheet
The 1.5KE Series silicon avalanche diodes are designed to protect sensitive electronic equipment from voltage transients such as lightning. They are suitable for I/O interfaces, Vcc buses and other vulnerable circuits in telecom, computer, industrial and consumer electronics.
Key features include 1500 W surge capability at a 10/1000 µs waveform, a voltage range of 6.8 V to 550 V, uni‑directional and bi‑directional options, and a glass‑passivated chip junction in a DO‑201 axial leaded package. The devices are RoHS compliant and offer low Zener impedance and typical reverse leakage below 1 µA above 10 V.
Littelfuse 1.5KE specifications
| Surge Capability | 1500 W (10/1000 µs) |
|---|---|
| Voltage Range | 6.8 V to 550 V |
| Package | Axial leaded DO‑201 |
| Reverse Leakage (IR) | <1 µA above 10 V |
| Weight | 0.045 oz (1.2 g) |
Source: Littelfuse 1.5KE Series Silicon Avalanche Diode Datasheet
All Littelfuse 1.5KE documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the surge capability of the 1.5KE series?
The diodes can handle a 1500 W surge at a 10/1000 µs waveform.
From: Littelfuse 1.5KE Series Silicon Avalanche Diode Datasheet
Are the 1.5KE diodes RoHS compliant?
Yes, the product features list includes RoHS compliance.
From: Littelfuse 1.5KE Series Silicon Avalanche Diode Datasheet
What is the surge capability of the 1.5KE series?
The series can handle a 1500 W surge at a 10/1000 µs waveform.
From: Littelfuse 1.5KE Series Transient Voltage Suppressor Datasheet
Are the 1.5KE devices RoHS compliant?
Yes, the 1.5KE series is RoHS compliant.
From: Littelfuse 1.5KE Series Transient Voltage Suppressor Datasheet
What is the maximum peak pulse power rating?
The device can handle a peak pulse power of 1500 W for a 10 µs pulse at 25 °C.
From: Littelfuse 1.5KE6.8‑1.5KE440CA Series Axial Transient Voltage Suppressor Datasheet
What packaging options are available?
Two packaging options are offered: bulk (500 pieces) and tape‑and‑reel (1500 pieces).
From: Littelfuse 1.5KE6.8‑1.5KE440CA Series Axial Transient Voltage Suppressor Datasheet
