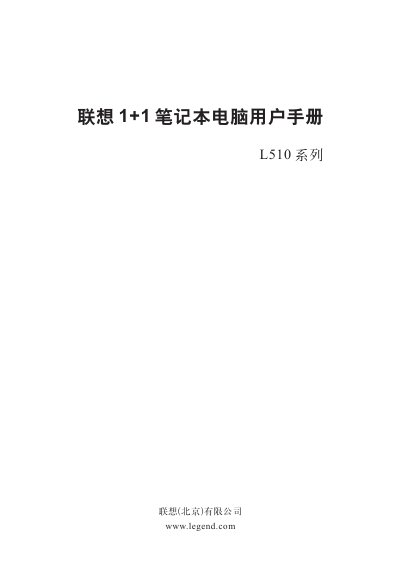

Lenovo L510 Series 1+1 Laptop User Manual
This manual introduces the Lenovo 1+1 laptop, covering safety precautions, hardware specifications, and the first‑time setup process. It includes a detailed table of contents that guides users through system overview, BIOS configuration, driver installation, and built‑in software features.
Later sections address maintenance, common fault diagnosis, and troubleshooting tips such as battery care, LCD issues, and connectivity problems. The document also lists the required operating environment and provides contact information for Lenovo support. This manual is written in Chinese.
Lenovo L510 specifications
| CPU | n478 pin mFC-PGA2 478 sockets |
|---|---|
| Display | 14.1 or 15.0 inch TFT LCD |
| Memory | 128 MB/256 MB/512 MB DDR RAM, expandable to 1024 MB |
| L2 Cache | 512 KB |
| Hard Drive | 2.5 inch laptop hard drive |
| Audio System | AC97‑compliant with built‑in speaker and microphone |
| Graphics Controller | Intel Montara‑GML, AGP4X |
| Optical Drive | 24× CD‑ROM or 8× DVD‑ROM or combo |
| Keyboard | 84‑key Windows keyboard |
| USB Ports | 3 USB ports |
| Dimensions | 326 mm × 270 mm × 29.8 mm (W × D × H) |
| Operating Temperature | 5 °C to 35 °C |
| Storage Temperature | -10 °C to 40 °C |
| Humidity (operating) | 30 % to 80 % (non‑condensing) |
Source: Lenovo L510 Laptop User Manual
All Lenovo L510 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I power on the Lenovo L510 laptop for the first time?
Place the laptop, remove all packaging and protection cards, connect the required peripherals, plug the AC adapter into the DC input, connect the adapter to a power outlet, open the LCD to 90°, and press the power button.
What should I check if the laptop does not power on?
Verify that the power adapter and its cables are firmly connected, check the battery charge and contacts, try powering with the battery alone or with the external adapter, and ensure the power‑indicator LED lights up.
Why does the CPU frequency appear lower when running on battery?
When the laptop is on battery, Intel SpeedStep reduces the CPU speed to save power, which is normal behavior.
What should I do if the battery does not charge to 100 %?
Charge the battery to about 95 % first, then continue charging to 100 %; the extra time is intentional to protect the battery.
