Key facts
- Brand
- KYORITSU
- Model
- KEW-2040
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 2
- Languages
- ZH
- Last added
- 2011-12-17
Start here

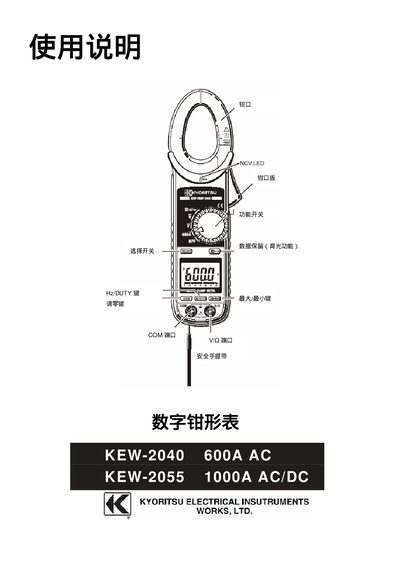

KYORITSU KEW-2040 / KEW-2055 Clamp Meter User Manual
The manual begins with safety and warning information, describing the IEC‑61010 compliance, protection class, and proper handling to avoid electric shock or equipment damage. It also lists the physical design features such as double‑layer housing, backlight (KEW‑2055 only), and battery‑saving auto‑off.
Subsequent sections detail measurement functions—including AC/DC current, voltage, resistance, continuity, diode test, frequency/DUTY, and NCV—along with range selection, zeroing, MIN/MAX, HOLD, and backlight operation. Technical specifications, battery replacement, and maintenance procedures are also covered. This manual is written in Chinese.
KYORITSU KEW-2040 specifications
| AC current range (KEW‑2040) | 0 ~ 600 A |
|---|---|
| AC current accuracy (KEW‑2040/KEW‑2055) | ±1.5 % rdg + 5 digits (50/60 Hz) |
| AC voltage range (auto‑range) | 6 V / 60 V / 600 V |
| AC voltage input impedance | 10 MΩ |
| Battery type | AAA or LBRO3/15 V |
Source: KYORITSU KEW-2040 / KEW-2055 Clamp Meter User Manual
All KYORITSU KEW-2040 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I turn the backlight on or off?
Press and hold the HOLD key for more than 2 seconds to turn the backlight on; press and hold it again for 2 seconds to turn it off.
What safety warnings should I follow when using the clamp meter?
Read all warnings, avoid measuring over 600 V DC, do not use in flammable atmospheres, keep the instrument dry, and never measure with exposed conductors that could cause short circuits.
How can I turn the backlight on or off?
Press and hold the HOLD key for more than 2 seconds to toggle the backlight; press again for the same duration to turn it off.
From: KYORITSU KEW-2040R 600A AC TRMS KEW-2055R 1000A AC/DC TRMS digital Clamp Meter User Manual
What does the NCV indicator show?
When the NCV sensor detects an electric field above 100 V, a red LED lights up on the panel to indicate the presence of voltage without contacting the circuit.
From: KYORITSU KEW-2040R 600A AC TRMS KEW-2055R 1000A AC/DC TRMS digital Clamp Meter User Manual
