KyoriTSU 6011A Manuals

ManualLib has 7 documents for the KyoriTSU 6011A (Industrial Supply): 7 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 7

Key facts

Model
6011A
Industry
Industrial
Documents
7
Languages
ZH · EN · ES
Last added
2026-10-07

Start here

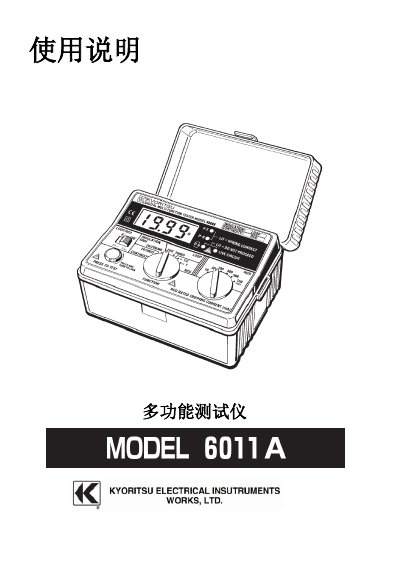

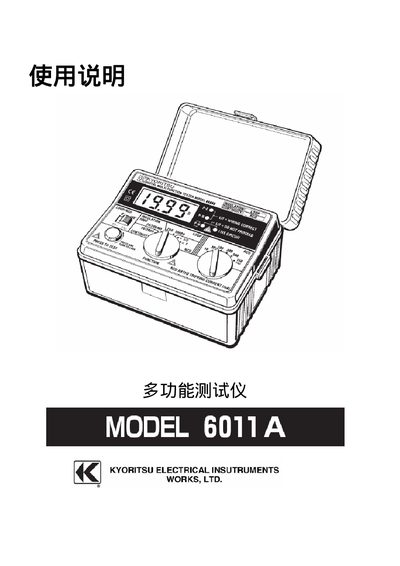

KYORITSU 6011A Multi-Function Tester Instruction Manual

KYORITSU 6011A Multi-Function Tester Instruction Manual

User Manual 32 pages · 1.7 MB · EN

This manual provides detailed instructions for operating the KYORITSU 6011A multi-function tester, including safety warnings, test procedures, and specifications. It covers six functions: continuity, insulation resistance, loop impedance, prospective short circuit current, RCD testing, and mains voltage warning. The tester is designed to meet IEC 61010-1, -2-030 CAT III safety standards and includes features like auto-discharge, live circuit warning, and over-temperature protection. It is intended for use by trained personnel on de-energized circuits for insulation and continuity tests, and on energized circuits for loop, PSC, and RCD tests with appropriate precautions.

Read online

KyoriTSU 6011A specifications

Measurement accuracy (conductance)±(1.5 % rdg + 3 dgt)
Loop‑impedance range20 Ω – 2000 Ω
Dimensions130 × 183 × 100 mm
Weight (with battery)1080 g
Battery type8 × LR6 or R6 (1.5 V)

Source: KYORITSU 6011A Multifunction Tester User Manual

All KyoriTSU 6011A documents by type

Questions answered in these manuals

What safety warnings are given for using the KYORITSU 6011A?

The manual warns that the equipment is electrically hazardous, must be operated only by trained personnel, the circuit must be de‑energised before testing, and exposed metal parts must not be touched.

From: KYORITSU 6011A Multifunction Tester User Manual

How do I replace the battery in the KYORITSU 6011A?

Open the battery cover, remove the old cells and install eight new 1.5 V LR6 or R6 batteries, making sure the polarity is correct, then close the cover.

From: KYORITSU 6011A Multifunction Tester User Manual

What safety standard and category is the tester designed to?

It is designed according to safety standard IEC 1010-1, category III (300 V).

From: Kyoritsu 6011A Multifunction Tester User Manual

What ingress protection rating does the instrument have?

The instrument has an IP54 protection rating in accordance with IEC60529.

From: Kyoritsu 6011A Multifunction Tester User Manual

Who is allowed to use the Kyoritsu 6011A tester?

It must only be used by a competent and trained person operating in strict accordance with the instructions.

From: Kyoritsu 6011A Multi-function Tester Instruction Manual

Can the instrument case be opened by the user?

Never open the case except for fuse and battery replacement, and only fully trained electrical engineers should open it.

From: Kyoritsu 6011A Multi-function Tester Instruction Manual
