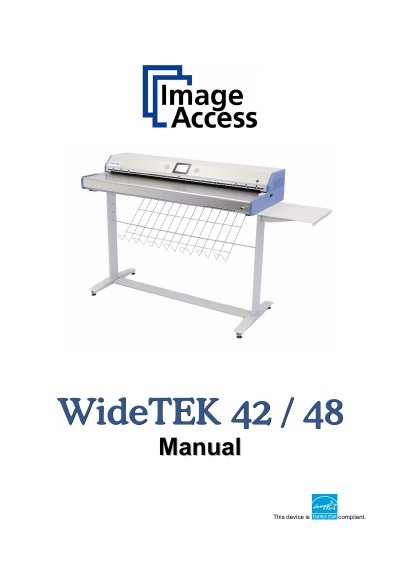

Image Access WideTEK 42/48 Scanner Operation Manual
This Operation Manual provides instructions for the normal operation and behavior of the Image Access WideTEK 42 and WideTEK 48 scanners. It is designed for users who operate the device without performing setup or adjustment procedures, covering hardware usage, software interface navigation, and file output options. The manual explains how to power the unit, navigate the integrated web-based user interface, and manage scanning jobs via various output methods such as FTP, email, and network printing.
Read onlineImage WideTEK 42 specifications
| Maximum Document Width | 50 inch / 1270 mm |
|---|---|
| Scan Width (Minimum) | 42 inch / 1067 mm |
| Scan Width (Maximum) | 48 inch / 1220 mm |
| Optical Resolution | 600 dpi |
| Sensor Type | Four color CCDs, encapsulated and dust-proof |
| Internal Grayscale Resolution | 12bit grayscale |
| Internal Color Resolution | 36bit color |
| Sensor Resolution | 91.200 pixels |
| Operating Temperature | +5 to +40° Celsius |
| Power Consumption (Scanning) | 210W |
Source: Image Access WideTEK 42/48 Setup and Assembly Manual
All Image WideTEK 42 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended setup for using this scanner?
It is recommended to always use the scanner in combination with the floor stand.
How can I recover the device to factory defaults?
You can perform a recovery function by following the specific steps outlined in the manual, but important notes should be read before proceeding.
What is the warm-up time for the scanner?
There is no warm-up time; maximum brightness is achieved immediately after switch-on.
What are the scan modes available?
The scanner supports 1bit Black/White, 8bit Grayscale, 24bit Color, and 8bit indexed modes.
