Key facts
- Brand
- Hisense
- Model
- HDP2908
- Category
- Television
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-02-27
Start here

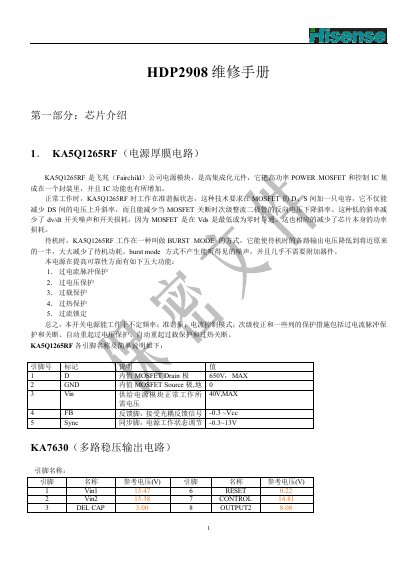

Hisense HDP2908 Service Manual
This service manual provides detailed information on the HDP2908 television, including chip introductions, pin assignments, signal flow diagrams, and functional descriptions. It covers power modules, audio processing ICs, video decoding circuits, and the CPU used in the TV.
The document also includes troubleshooting procedures, repair flowcharts, and specifications such as display type, scanning modes, video interfaces, and preset channel count, helping technicians diagnose and fix common issues. This manual is written in Chinese.
Hisense HDP2908 specifications
| Display type | 100 Hz flat‑panel |
|---|---|
| Scanning modes | 100 Hz, 1250, 60 Hz progressive, 833 pixel enhancement |
| HD compatibility | 1080I50 / 1080I60 |
| DVD interface | YPbPr component |
| Preset channels | 200 |
Source: Hisense HDP2908 Service Manual
All Hisense HDP2908 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What scanning modes does the HDP2908 support?
It supports four scanning modes: 100 Hz, 1250, 60 Hz progressive, and 833 pixel enhancement.
How many preset channels are available on the HDP2908?
The TV provides 200 preset channels.
