Start here

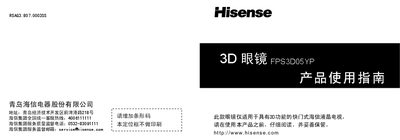

Hisense FPS3D05YP 3D Glasses User Manual
The Hisense FPS3D05YP is a shutter‑type 3D glasses designed for use with Hisense 3D‑capable LCD TVs. It operates with RF 2.4 GHz technology and includes a rechargeable lithium‑polymer battery.
The manual covers safety precautions, box contents, technical specifications, pairing procedure, indicator‑light functions, health warnings, and troubleshooting such as loss of 3D effect and low‑battery indications. This manual is written in Chinese.
Hisense FPS3D05 specifications
| Model | FPS3D05YP |
|---|---|
| Product Type | Shutter‑type |
| Sync Method | RF (2.4 GHz) |
| Working Current | 1 mA |
| Charging Time | ≈3 hours |
| Battery Life | ≈50 hours |
| Operating Temperature | 0‑40 °C |
| Storage Temperature | -5‑50 °C |
| Recommended Viewing Distance | 2‑6 m |
All Hisense FPS3D05 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Why does the glasses show no 3D effect after turning on?
Make sure the protective film on both lenses is removed, keep the distance to the TV under 6 m, set the TV to 3D mode, hold the pairing button for more than 2 seconds, and charge the battery if it is empty.
How do I pair the glasses with the TV?
Turn on the TV, enable the 3D function, press and hold the mode key for more than 2 seconds, release it, and the glasses will pair within 60 seconds, indicated by a blue light.
