Key facts
- Brand
- Hisense
- Model
- TLM42E01
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-03-20
Start here

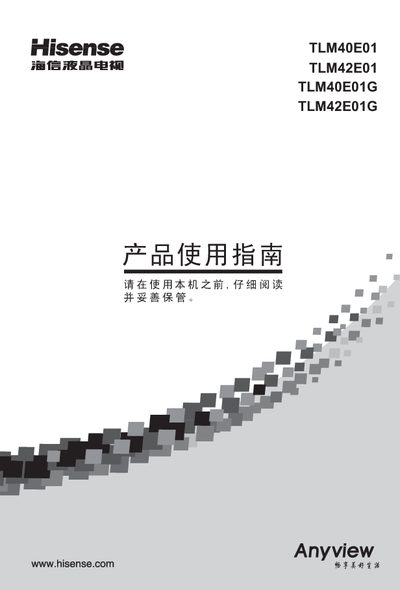

Hisense TLM42E01G LCD Television User Manual
This manual explains how to safely install, operate, and maintain the Hisense TLM42E01G liquid‑crystal television. It includes safety warnings, recommended cleaning methods, and guidelines for avoiding screen burn‑in.
The guide also details the TV’s basic functions such as power control, channel selection, picture and sound settings, as well as connections for external devices like HDMI, VGA, and component inputs. Service information and a parts list are provided for professional technicians. This manual is written in Chinese.
Hisense TLM42E01 specifications
| Screen diagonal (minimum) | 102 cm |
|---|---|
| Resolution | 1920 × 1080 |
| Audio power | 8 W |
| Input voltage | 220 V 50 Hz |
| Operating temperature range | 5 °C – 35 °C |
| Operating humidity range | 20 % – 80 % RH |
| Video input (composite) | 1.0 Vpp, 75 Ω |
| VGA input | TTL, high‑impedance |
All Hisense TLM42E01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which external video inputs are available on the TV?
The TV provides a D‑sub 15‑pin VGA connector, HDMI, USB, and component video inputs for connecting computers and other devices.
How can I reduce power consumption when the TV is not in use?
Turn off the TV using the AC power switch instead of standby mode, and lower the screen brightness when possible.
