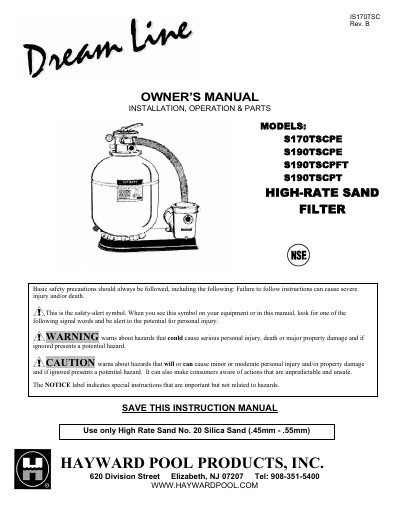

Hayward S170TSCPE High-Rate Sand Filter Owner's Manual

About this manual

This owner's manual provides installation, operation, and parts information for the Hayward High-Rate Sand Filter models S170TSCPE, S190TSCPE, S190TSCPFT, and S190TSCPT. It details safety precautions regarding suction entrapment hazards and hazardous pressure systems.

What's inside

• Safety Precautions
• How It Works
• Installation
• Loading Sand Media
• Assemble Filter Control Valve

Frequently asked questions

What type of sand must be used in this filter?

You must use High Rate Sand No. 20 Silica Sand with a grain size of .45mm to .55mm.

How high above the pool water level should the filter be installed?

The filter system should be installed no more than 6 feet above the pool water level.

How often should the suction outlet covers be replaced?

The cover or grate should be replaced at least every ten years or if it is damaged.
