This is an electrolyte meter that can measure dissolved salt, pH, dissolved oxygen concentration and temperature in water.

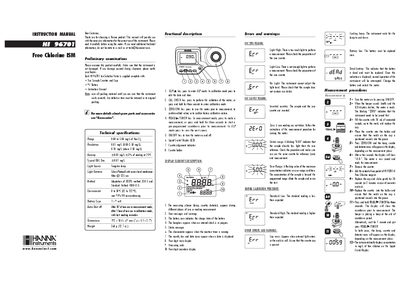

This instruction manual provides guidance for the correct use of the Hanna Instruments HI96701 Free Chlorine ISM meter. It details the preliminary examination of the instrument, including the contents of the package such as sample cuvettes and batteries. The document outlines the technical specifications, including the measurement range of 0.00 to 5.00 mg/l, resolution, and accuracy at 25°C. It also describes the functional description of the keys and display elements.
| Range | 0.00 to 5.00 mg/l of Free Cl |
|---|---|
| Resolution | 0.01 mg/l (0.00-3.50 mg); 0.10 mg/l (above 350 mg/l) |
| Accuracy | ±0.03 mg/l ±3% of reading at 25°C |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 525 nm |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4) x 2.7" |
| Weight | 360 g (12 oz) |
The range is 0.00 to 5.00 mg/l of Free Cl.
The instrument shuts down after 10 minutes of non-use in measurement mode.
One fresh battery lasts for around 750 measurements depending on the light level.
