Key facts
- Brand
- GSI
- Model
- GS36T-250
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-06
Start here

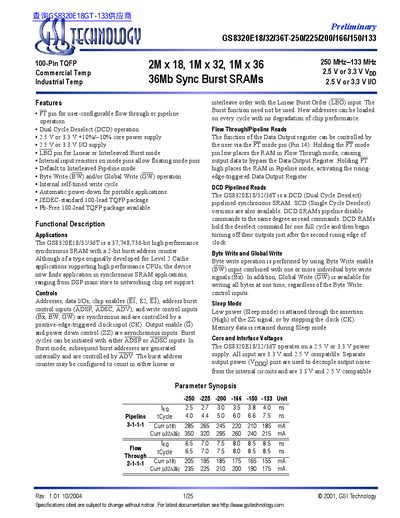

GSI TECHNOLOGY GS8320E18/32/36T-250/225/200/166/150/133 2M x 18 1M x 32 1M x 36 36Mb Sync Burst SRAMs
Datasheet 25 pages · 446 KB · EN
The document details the GS8320E18/32/36T, a 37.7Mbit (36Mb) high-performance synchronous SRAM designed for applications ranging from DSP main store to networking chipset support. The device supports both Commercial and Industrial temperature ranges with operating voltages of 2.5V or 3.3V.
Read onlineGSI GS36T-250 specifications
| Capacity | 37,748,736-bit (36Mb) |
|---|---|
| Package | JEDEC-standard 100-lead TQFP |
| Operating Voltage | 2.5 V or 3.3 V |
| Clock Input Type | Positive-edge-triggered |
All GSI GS36T-250 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the default burst mode?
The device defaults to Interleaved Pipeline mode.
What are the available burst modes?
The device supports Linear Burst Order and Interleaved Burst Order.
What is the core voltage of the GS8320EV18/32/36T SRAM?
The device operates on a 1.8 V power supply.
From: GSI TECHNOLOGY GS8320EV18/32/36T-250/225/200/166/150/133 handbook
Which package type is used for the GS8320EV series?
It is offered in a 100‑pin TQFP package, with a Pb‑free version available.
From: GSI TECHNOLOGY GS8320EV18/32/36T-250/225/200/166/150/133 handbook
