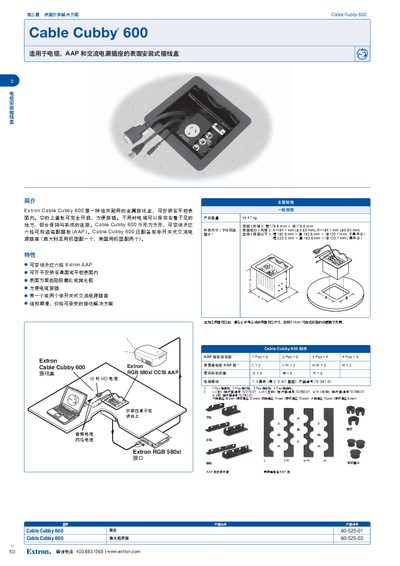

Extron Cable Cubby 600 Junction Box Manual
User Manual 1 pages · 565 KB · ZH
The Cable Cubby 600 is a sturdy metal surface‑mount junction box designed for cables, AAP modules and AC power outlets. Its top cover opens fully for easy cable insertion and the box can hide cables while keeping them connected.
It can hold up to six Extron AAP slots, offers one or two non‑switchable AC outlets, and measures 176.8 mm × 176.8 mm for the top plate with overall dimensions of 162.6 mm × 162.8 mm × 120.7 mm (without clamps). The unit weighs about 41 kg. Accessories include AAP brackets, cable rings and power modules. This manual is written in Chinese.
All EXtron Cable Cubby 600 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many AAP slots can the Cable Cubby 600 accommodate?
It can accommodate up to six Extron AAP slots.
