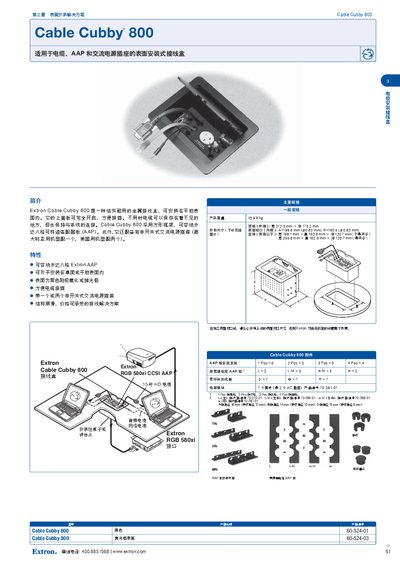

Extron Cable Cubby 800 Junction Box Manual
The Extron Cable Cubby 800 is a sturdy metal surface‑mount junction box designed for cables, AAP modules and AC power sockets. Its fully removable top panel allows easy cable access while keeping cables hidden when not in use. The box can hold up to eight Extron AAP slots and is available with one or two non‑switchable AC power outlets depending on the market.
The product weighs about 5.9 kg and measures 212.3 mm × 173.2 mm externally. Internal cutout dimensions are A = 199.6 mm (±0.83 mm) and B = 160.5 mm (±0.83 mm). Overall size without clamp is 198.1 mm × 162.8 mm × 120.7 mm, and with clamp 255.8 mm × 162.8 mm × 120.7 mm. It is offered in black anodized or polished aluminum finishes and includes optional accessories such as AAP mounting brackets and cable rings. This manual is written in Chinese.
EXtron Cable Cubby 800 specifications
| Weight | ≈5.9 kg |
|---|---|
| External dimensions | 212.3 mm × 173.2 mm |
| Internal cutout A | 199.6 mm (±0.83 mm) |
| Internal cutout B | 160.5 mm (±0.83 mm) |
| Overall size without clamp | 198.1 mm × 162.8 mm × 120.7 mm |
| Overall size with clamp | 255.8 mm × 162.8 mm × 120.7 mm |
| Power module | 1 module with 2 AC sockets |
| Surface finish | Black anodized or polished aluminum |
| AAP capacity | Up to 8 slots |
All EXtron Cable Cubby 800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many AAP slots can the Cable Cubby 800 hold?
It can accommodate up to eight Extron AAP slots.
What are the external dimensions of the Cable Cubby 800?
The box measures approximately 212.3 mm wide by 173.2 mm deep.
