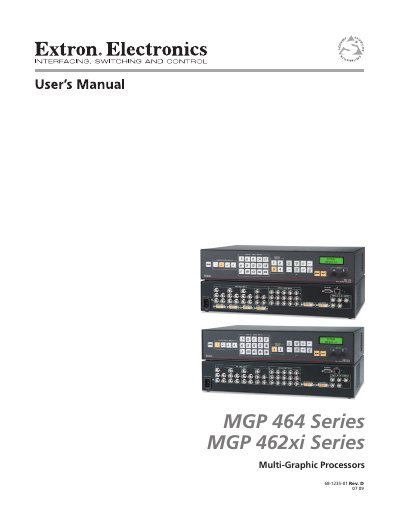

Extron MGP 464 & MGP 462xi Multi-Graphic Processor User Manual
This manual begins with safety warnings that alert users to the presence of uninsulated dangerous voltage, the need to use only the specified power source, proper grounding, and to have qualified service personnel perform any maintenance. It also outlines the required precautions for handling the lithium battery and keeping ventilation slots clear.
The remainder of the document covers installation (including rack‑mounting), detailed configuration of video inputs, outputs, picture controls, and network settings, as well as operation of the processors, firmware updates, and special applications such as matrix switching and daisy‑chaining.
EXtron MGP 464 specifications
| Maximum video resolution | 1600×1200, HDTV 1080p/60 |
|---|---|
| Number of windows per processor | 4 |
| Memory presets | 128 |
| Power supply | 100 VAC–240 VAC, 50/60 Hz, 30 W |
| Physical dimensions (per unit) | 3.4 in L × 17.5 in W × 12.0 in H (2U rack height) |
| Weight | 8.5 lb (3.9 kg) |
| Operating temperature range | +32 °F to +122 °F (0 °C to +50 °C) |
| Ethernet data rate | 10/100 Base‑T |
| Serial control ports | RS‑232 or RS‑422 |
All EXtron MGP 464 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum video resolution supported by the MGP 464W?
The MGP 464W supports up to 1600×1200 resolution and HDTV 1080p/60 output.
How many custom layout presets can be saved in the WindoWall console?
The console can store up to 128 custom window presets.
How many windows can the MGP 464 display simultaneously?
The MGP 464 can display up to four windows at the same time.
From: Extron MGP 464 & MGP 462xi Multi-Graphic Processor User Manual
Can the MGP processors be rack‑mounted?
Yes, the 2U high metal enclosure can be rack‑mounted using the included rack or through‑desk mounting brackets.
From: Extron MGP 464 & MGP 462xi Multi-Graphic Processor User Manual
