Start here

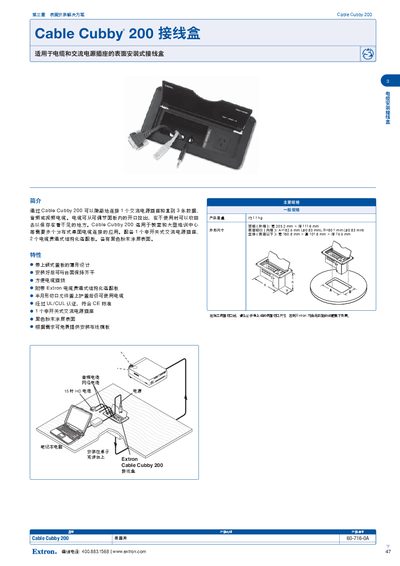

Extron Cable Cubby 200 Junction Box Manual
User Manual 1 pages · 825 KB · ZH
The Cable Cubby 200 is a surface‑mount junction box that discreetly connects one AC power outlet and up to three data, audio, or video cables. It is designed for classrooms, large training centers, and other environments that require distributed desktop cable connections.
Key features include a non‑switch AC power outlet, two cable‑pass‑through structured plates, UL and CE certification, a black powder‑coated surface, and dimensions that allow the box to sit flush with a tabletop. This manual is written in Chinese.
EXtron Cable Cubby 200 specifications
| Weight | ≈1.1 kg |
|---|---|
| Top plate outer dimensions | 203.2 mm × 111.6 mm |
| Surface cutout dimensions | A = 182.5 mm, B = 80.1 mm |
| Overall dimensions | 180.8 mm × 101.6 mm × 75.5 mm (W × H × D) |
| AC power outlets | 1 non‑switch outlet |
| Cable pass‑through plates | 2 structured plates |
| Certifications | UL and CE |
| Surface finish | Black powder‑coated |
All EXtron Cable Cubby 200 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many AC power outlets does the Cable Cubby 200 have?
It has one non‑switch AC power outlet.
What are the overall dimensions of the Cable Cubby 200?
The box measures 180.8 mm wide, 101.6 mm high, and 75.5 mm deep.
