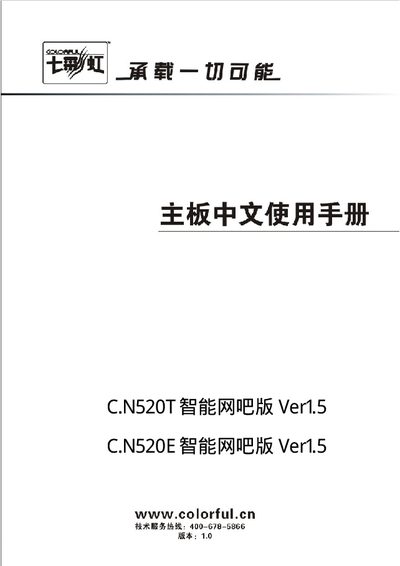

Colorful C.N520T / C.N520E Motherboard User Manual
This manual provides step‑by‑step instructions for installing the Colorful C.N520T and C.N520E motherboards, including hardware mounting, driver installation and BIOS configuration. Safety precautions for handling static‑sensitive components are also included.
The document lists the board’s technical specifications such as chipset, supported CPUs, memory types, expansion slots, storage interfaces, audio, networking and power‑management features, and supplies a detailed layout diagram and connector reference table. This manual is written in Chinese.
Colorful N520T specifications
| Memory Type | DDR2 533/667/800, dual‑channel |
|---|---|
| IDE Ports | 2 × IDE |
| BIOS Chip | Award BIOS, 4 MB Flash EEPROM |
All Colorful N520T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the motherboard use?
The board uses an AMD socket AM2.
How many DDR2 memory slots are available?
There are four 240‑pin DDR2 slots supporting dual‑channel operation.
What CPU socket does the C.N520T motherboard use?
It uses an AMD Socket AM2 compatible with AMD Athlon64, Athlon64 X2 and Sempron processors.
How many USB ports are available on the motherboard?
The board provides eight USB 2.0 ports, four of which require cables to be connected.
