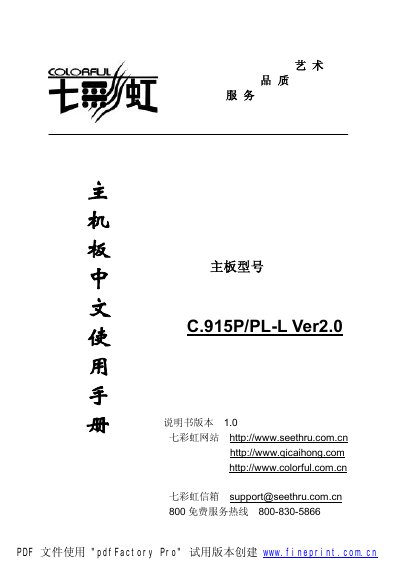

Colorful C.915P/PL-L Ver2.0 Motherboard User Manual
The Colorful C.915P/PL-L Ver2.0 motherboard manual provides a complete guide to the board’s features, hardware layout, and configuration options. It includes detailed sections on the CPU socket, chipset, memory support, expansion slots, audio, networking, and power management.
Installation steps, BIOS settings, driver installation, and troubleshooting tips are also covered, helping users set up and maintain the motherboard safely and efficiently. This manual is written in Chinese.
Colorful C.915P specifications
| CPU socket | LGA775 |
|---|---|
| Supported processors | Intel Pentium 4, Celeron D Prescott |
| Memory slots | 2 × 184‑pin 2.5 V DIMM |
| Maximum memory | 2 GB DDR400 |
| PCI‑Express x16 slots | 1, 4 GB/s bandwidth |
| PCI‑Express x1 slots | 2, 250 MB/s bandwidth each |
| PCI slots | 3 × 33 MHz, 32‑bit |
| USB ports | 8 × USB 2.0 |
| Network controller | Realtek RTL8100C 10/100 Ethernet |
| Audio codec | Realtek ALC880 HD Audio |
| BIOS type | Phoenix‑Award (Award plug‑and‑play) with flash ROM |
All Colorful C.915P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What processors are supported by the C.915P/PL-L Ver2.0 motherboard?
It supports Intel Pentium 4 and Celeron D Prescott CPUs using an LGA775 socket.
How much memory can the board handle?
The board can accommodate up to 2 GB of DDR400 memory across two 184‑pin DIMM slots.
How many memory slots does the C.915PL-L Ver2.2 motherboard have?
It provides two 184‑pin 2.5 V DIMM slots that support dual‑channel DDR memory up to 2 GB.
What audio codec is integrated on the motherboard?
The board uses a Realtek ALC850 AC97 codec with 7.1‑channel audio output.
What CPUs are supported by the C.915P Pro‑R Ver2.0 motherboard?
It supports Intel Pentium 4 processors (Prescott) for the LGA775 socket.
Does the motherboard include RAID functionality?
Yes, it has an onboard IDE RAID controller that supports ATA133 RAID 0, RAID 1 and RAID 0+1 modes.
