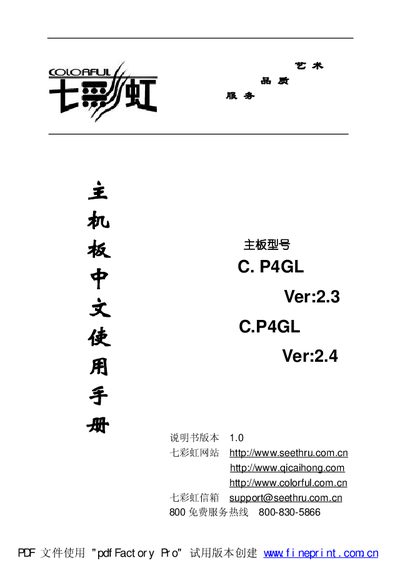

Colorful C.P4GL Motherboard User Manual
This manual introduces the Colorful C.P4GL Micro‑ATX motherboard, which supports Intel Socket 478 Pentium 4 and Celeron 4 processors (Willamette and Northwood cores) and offers 400/533 MHz FSB, DDR200/266 memory up to 2 GB, and integrated AC'97 audio. It details the chipset (Intel 82845GL GMCH with Intel 82801DB ICH4), USB2.0 ports, optional 10/100 Mbps Ethernet, and expansion slots.
The document includes hardware installation procedures, BIOS setup (Award BIOS with ACPI 1.0B and APM 1.2), power‑management options, jumper settings, connector descriptions, and troubleshooting of common error messages. Version 2.3 lacks an on‑board network controller, while version 2.4 includes it. This manual is written in Chinese.
Colorful C.P4GL specifications
| CPU Socket | Socket 478 |
|---|---|
| Supported CPUs | Pentium 4 Willamette and Northwood cores |
| Front Side Bus | 400 MHz |
| Chipset | Intel 82845GL (GMCH) with Intel 82801DB (ICH4) |
| Memory Slots | 2 DDR 184‑pin 2.5 V slots |
| Maximum Memory | 2 GB DDR200/266 |
| Integrated Audio | AC’97 Codec controller |
| USB Ports | 6 USB2.0 ports |
| Network Interface | RealTek RTL81XX 10/100 Mbps Ethernet |
| Expansion Slots | 3 PCI slots |
| Power Supply Connector | Dedicated P4 power connector |
| Power Management | Supports ACPI 1.0B and APM 1.2 |
All Colorful C.P4GL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPUs are compatible with the C.P4GL533 motherboard?
It supports Intel Pentium 4 and Celeron 4 processors with Willamette or Northwood cores using the Socket 478 socket.
How much memory can the board hold and how many slots are available?
The board has two DDR 184‑pin slots and can hold up to 2 GB of DDR200/266 memory.
Which processors are compatible with the Colorful C.P4GL motherboard?
It supports Intel Socket 478 Pentium 4 (Willamette and Northwood) and Celeron 4 processors.
Does the C.P4GL have built‑in Ethernet?
Version 2.3 does not include a network controller, while version 2.4 adds an on‑board Ethernet chip.
