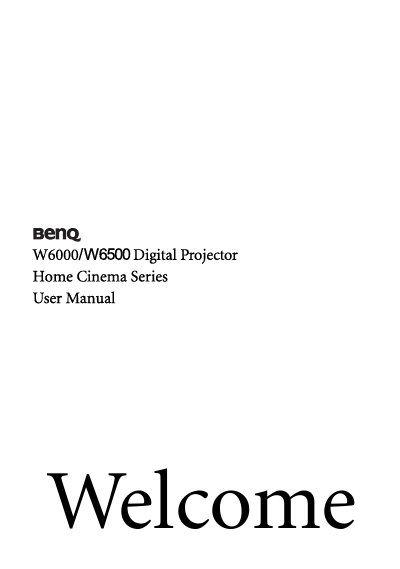

BenQ W6000/W6500 Digital Projector User Manual
The BenQ W6000/W6500 is a digital projector designed to provide an enjoyable home theater viewing experience. This manual serves as a guide for controlling menus and operating the device, covering everything from initial setup to advanced picture quality adjustments.
Key topics include positioning the projector for optimal screen size, connecting various video equipment such as HDMI and component-video devices, and utilizing security features like password protection and control key locks. The document also details lamp care, replacement procedures, and troubleshooting steps.
BenQ W6000 specifications
| Native Resolution | 1080p (1920 x 1080) |
|---|---|
| Brightness | 2500 ANSI lumens |
| Lamp Power / Life | 280W, 2000/3000 hours (Normal/Economic mode) |
| Contrast Ratio | 50000:1 (Full on/Full off) |
| Weight | 14.8 lbs (6.7 kg) |
| Noise Level | 32/29 dB (Normal/Economic mode) |
| Throw Ratio | 1.62 to 2.43 (55.7"@2M) |
| Zoom Ratio | Manual Zoom, 1.5:1 |
| Lens Focal Length | F=2.48-2.81, f=24.1-36.1 |
| Display Color | Full 1.07 billion color palette |
| Horizontal Frequency | 31-92 kHz |
| Vertical Scan Rate | 48-86 Hz |
| Video Compatibility | NTSC, PAL, SECAM |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p/60/50/24 |
| Output Terminals | Composite Video RCA x1, DC 12V, RS232 D‑sub 9‑pin, USB mini‑B (service only) |
| Power Supply | 100‑240 V AC, 50‑60 Hz, Max 430 W |
| OSD Languages | English, French, German, Italian, Spanish, Japanese, Traditional Chinese, Simplified Chinese |
Source: BenQ W6000 Projector User Manual
All BenQ W6000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the effective range of the remote control?
The effective range of the remote control is up to 8 meters, and at an angle within 45 degrees of the IR beam.
Can I use a non-BenQ ceiling mount kit?
BenQ strongly recommends using a proper fitting BenQ projector ceiling mount kit; using a non-BenQ brand carries a safety risk.
What is the brightness of the BenQ W6000 projector?
The projector provides 2500 ANSI lumens of brightness.
How long does the lamp last in normal and economic modes?
The lamp is rated for 2000 hours in normal mode and 3000 hours in economic mode.
What is the brightness of the BenQ W6000 projector?
The projector delivers 2500 ANSI Lumens of brightness.
How many lamp hours are supported in Eco‑Mode?
Eco‑Mode provides up to 3000 lamp hours.
