The BenQ W6000 is a DLP projector from BenQ that features a 1080p resolution, 2500 ANSI lumens, 50000:1 contrast ratio, a 280W lamp, a 1.5:1 manual zoom, and a 24.1-36.1mm lens.

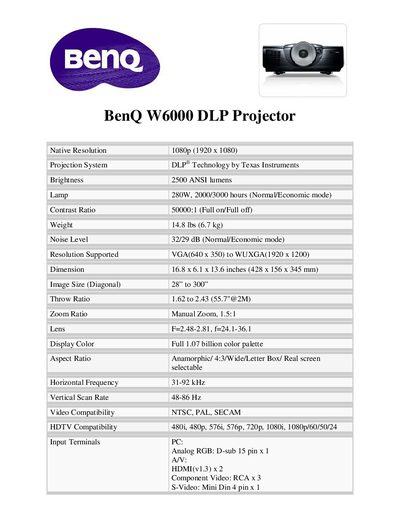

This manual introduces the BenQ W6000 DLP projector, highlighting its 1080p native resolution, 2500 ANSI lumens brightness, 50000:1 contrast ratio, and compact dimensions. Key specifications such as lamp power, weight, noise level, throw and zoom ratios, and lens details are listed.
The guide details all input and output terminals, power requirements, OSD language options, preset modes, and included accessories. It also covers control terminals, power consumption, and service information for users and technicians.
| Native Resolution | 1080p (1920 x 1080) |
|---|---|
| Brightness | 2500 ANSI lumens |
| Lamp Power / Life | 280W, 2000/3000 hours (Normal/Economic mode) |
| Contrast Ratio | 50000:1 (Full on/Full off) |
| Weight | 14.8 lbs (6.7 kg) |
| Noise Level | 32/29 dB (Normal/Economic mode) |
| Throw Ratio | 1.62 to 2.43 (55.7"@2M) |
| Zoom Ratio | Manual Zoom, 1.5:1 |
| Lens Focal Length | F=2.48-2.81, f=24.1-36.1 |
| Display Color | Full 1.07 billion color palette |
| Horizontal Frequency | 31-92 kHz |
| Vertical Scan Rate | 48-86 Hz |
| Video Compatibility | NTSC, PAL, SECAM |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p/60/50/24 |
| Output Terminals | Composite Video RCA x1, DC 12V, RS232 D‑sub 9‑pin, USB mini‑B (service only) |
| Power Supply | 100‑240 V AC, 50‑60 Hz, Max 430 W |
| OSD Languages | English, French, German, Italian, Spanish, Japanese, Traditional Chinese, Simplified Chinese |
The projector provides 2500 ANSI lumens of brightness.
The lamp is rated for 2000 hours in normal mode and 3000 hours in economic mode.
The OSD can be displayed in English, French, German, Italian, Spanish, Japanese, Traditional Chinese, and Simplified Chinese.
