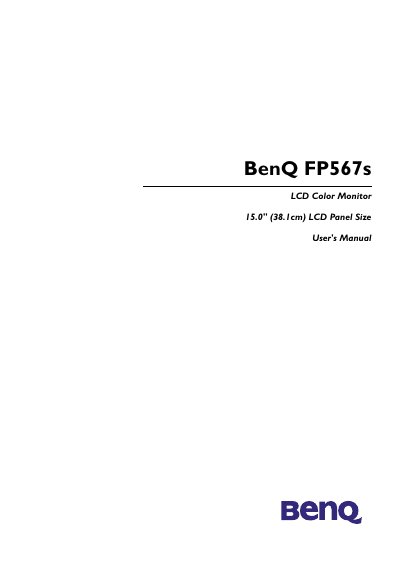

BenQ FP567s LCD Color Monitor User Manual
This manual guides you through unpacking, hardware and software installation, and adjustment of the BenQ FP567s 15.0" LCD color monitor. It includes safety instructions, connection diagrams, and step‑by‑step procedures for configuring the monitor with a PC.
The document also contains a troubleshooting section with common issues such as blurred images, pixel errors, and colour problems, plus a full specifications table covering display performance, power consumption, and environmental limits.
BenQ FP567 specifications
| Display size | 15.0" (38.1 cm) diagonal |
|---|---|
| Color depth | 16.7 million colors |
| Brightness | 250 cd/m² (max 260 cd/m²) |
| Power consumption | Maximum 40 W, <3 W in power‑saving mode |
| Operating voltage | 90‑264 V AC, 47‑63 Hz |
All BenQ FP567 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does a green LED on the display indicate?
A green LED means the monitor is powered on; press the Exit button to access the On‑Screen Display.
How do I adjust the contrast on the FP567 monitor?
Press the “<” key to enter Contrast hot‑key mode, use “<” or “>” to adjust the level, and press “Exit” to save.
What power‑supply voltage range does the FP567 support?
The monitor uses an automatic switched‑mode power supply that works from 90 V to 264 V at 47‑63 Hz.
