Start here

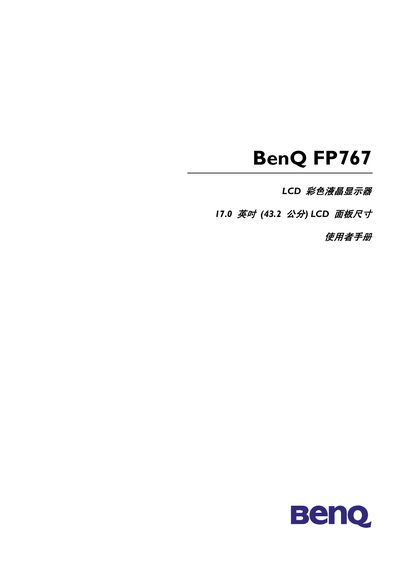

BenQ FP767 User Manual
This manual begins with safety information, including warnings about electrical shock, proper cleaning, and ventilation, followed by detailed hardware installation steps such as attaching the monitor to its base, connecting power, audio, and signal cables, and configuring the monitor settings.\n\nLater sections list the monitor's technical specifications—screen size, resolution, color depth, contrast, power consumption, and environmental limits—and offer troubleshooting tips for image interruptions, interference lines, and advice on using power‑management features to extend the product’s lifespan. This manual is written in Chinese.
Read onlineBenQ FP767 specifications
| Model | FP767 |
|---|---|
| Screen size | 17.0 inches (diagonal) |
| Native resolution | 1280 × 1024 |
| Color depth | 16.2 million colors |
| Contrast ratio | 500:1 (max 600:1) |
| Brightness | 260 cd/m² (max 290 cd/m²) |
| Response time | 16 ms |
| Viewing angle | 70°/70° (CR=10) and 80°/80° (CR=5) |
| Maximum power consumption | 50 W |
| Power‑save mode consumption | < 5 W |
| Input signal | RGB analog 0.7 Vpp / 75 Ω |
| Dimensions (W×H×D) | 382.7 × 404.3 × 200 mm |
Source: BenQ FP767 User Manual
All BenQ FP767 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I extend the lifespan of the FP767 monitor?
Use the computer’s power‑management features as recommended by the manual.
From: BenQ FP767 User Manual
What are the proper cleaning precautions for the FP767 monitor?
Clean the LCD surface with a soft, non‑abrasive cloth and avoid any cleaning liquids or solvents.
From: BenQ FP767 User Manual
Can I clean the LCD screen with solvents?
No, you should avoid using any cleaning solvents or chemical cleaners on the screen.
What type of power source should be used?
The monitor must be operated with the specified AC power source; consult the power company if you are unsure.
