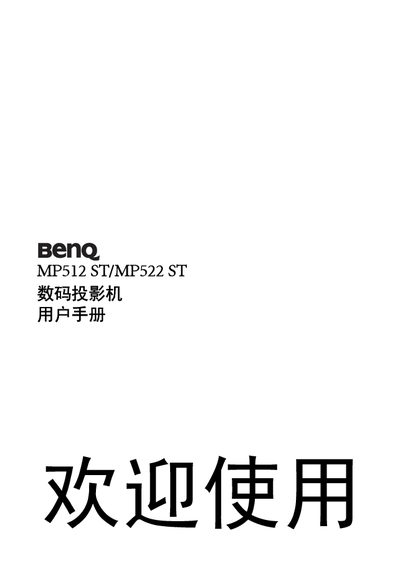

BenQ MP512 ST / MP522 ST Digital Projector User Manual
This manual introduces the BenQ MP512 ST and MP522 ST digital projectors, covering safety precautions, key features, and the items included in the package. It explains the exterior layout, control panel functions, and how to install the projector in various environments, including ceiling‑mount options.
Detailed sections guide users through connecting video sources, adjusting image settings, using the menu system, and performing routine maintenance such as lamp replacement. Troubleshooting advice and a full specification table are provided for reference. This manual is written in Chinese.
BenQ MP522 ST specifications
| Optical resolution | 800 × 600 SVGA / 1024 × 768 XGA |
|---|---|
| Display system | 1‑CHIP DMD |
| Lens focal length | F = 2.5, f = 10 mm |
| Lamp power | 185 W |
| Maximum power consumption | 280 W |
| Dimensions (W × H × D) | 255 mm × 90 mm × 214 mm |
| Weight | ≈ 5.29 lb (2.4 kg) |
| Input terminals | RGB D‑sub 15‑pin, S‑Video, HDMI (MP512 ST), VGA, component (YPbPr) |
| HDMI port | HDMI V1.2 (MP512 ST only) |
| RS‑232 control port | 9‑pin serial |
| Operating temperature (sea level) | 0 °C – 40 °C |
| Relative humidity (operating) | 10 % – 90 % (no condensation) |
| Supported AC input voltage | 100 V – 240 V, 50/60 Hz |
Source: BenQ MP512 ST / MP522 ST Digital Projector User Manual
All BenQ MP522 ST documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long should I wait before replacing the lamp?
Wait about 45 minutes after the lamp turns off to allow the projector to cool before replacing it.
From: BenQ MP512 ST / MP522 ST Digital Projector User Manual
What AC voltage range can the projector operate on?
The projector works with an AC input voltage from 100 V to 240 V, 50/60 Hz.
From: BenQ MP512 ST / MP522 ST Digital Projector User Manual
