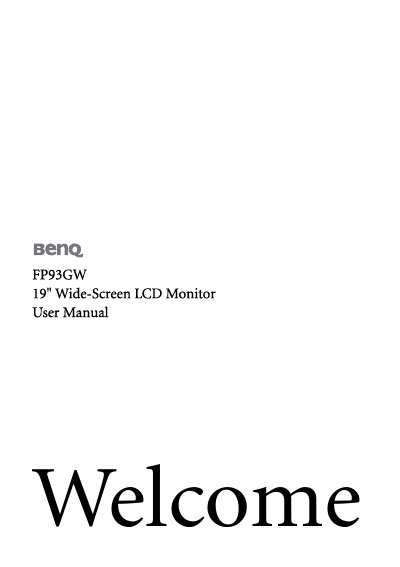

BenQ FP93GW Monitor User Manual
This manual covers safety and power instructions, cleaning guidelines, and detailed assembly steps for the FP93GW 19" widescreen LCD monitor. It explains how to attach and detach the stand, connect video and power cables, and use the wall‑mounting kit.
Further sections describe how to install the monitor on various operating systems, adjust resolution, refresh rate, and picture settings, and troubleshoot common issues. A full specifications table and supported PC timings are also included.
BenQ FP93GW specifications
| Display type | 19.0" wide‑screen, active, TFT |
|---|---|
| Native resolution | 1440 x 900 |
| Contrast ratio | 700:1 |
| Brightness | 300 cd/m² |
| Viewing angle | 160° horizontal / 160° vertical |
| Maximum power consumption | 45 Watt |
| Input signal | RGB analog 0.7 Vpp / 75 Ω |
| Dimensions (H×W×D) | 285.7 × 435.6 × 61.4 mm |
Source: BenQ FP93GW Monitor User Manual
All BenQ FP93GW documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does an orange LED on the monitor indicate?
An orange LED means the power‑management mode is active; press any key on the computer keyboard or move the mouse to wake the monitor.
How can I unlock the OSD controls if they are locked?
Press and hold the MENU key for 15 seconds to enter the OSD Lock option, then select OFF to make the OSD controls accessible.
How do I adjust the screen resolution?
Open Windows display settings and select a supported resolution such as 1440 × 900, as described in the "How to adjust screen resolution" section.
How can I unlock the OSD controls if they are locked?
Hold the MENU key for 15 seconds to enter the OSD Lock option and disable the lock.
