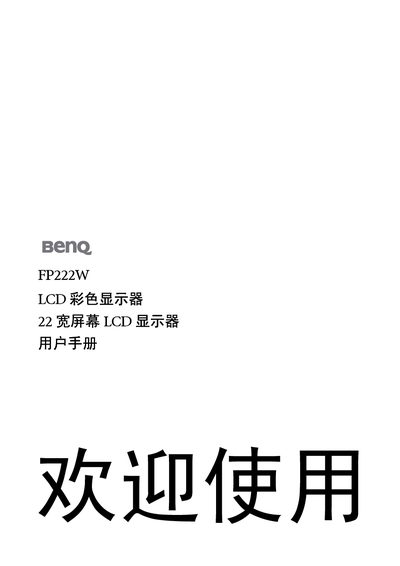

BenQ FP222W LCD Color Display User Manual
This manual provides safety instructions, cleaning guidelines, and warranty information for the BenQ FP222W 22‑inch LCD color display. It explains how to set up the monitor, connect video cables, and adjust settings using the OSD menu.
The document also lists the technical specifications, including display type, resolution, contrast, brightness, response time, power consumption, and supported input signals, helping users verify compatibility with their PC and optimize image quality. This manual is written in Chinese.
BenQ FP222W specifications
| Display type | 22.0" active TFT |
|---|---|
| Screen diagonal | 558.68 mm |
| Resolution | 1680 x 1050 |
| Contrast (typical) | 700:1 |
| Brightness (typical) | 300 cd/m2 |
| Response time (typical) | 5 ms |
| Viewing angle (horizontal/vertical typical) | 170/160 |
| Maximum power consumption | < 49 W |
| Standby power consumption | < 1 W (120V) / < 2 W (240V) |
| Input signal (analog) | PC RGB 0.7 Vpp / 75 Ω |
| Input signal (digital) | DVI‑D (optional) |
All BenQ FP222W documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the native resolution of the BenQ FP222W monitor?
The monitor supports a native resolution of 1680 × 1050 pixels.
How much power does the FP222W consume at maximum load?
Maximum power consumption is less than 49 W.
How can I unlock the OSD menu?
Hold the MENU key for 15 seconds to enter the OSD Lock option and change the setting.
What should I do if the image moves across the screen?
Read the "How to adjust screen resolution" section and adjust the resolution and refresh rate as instructed.
