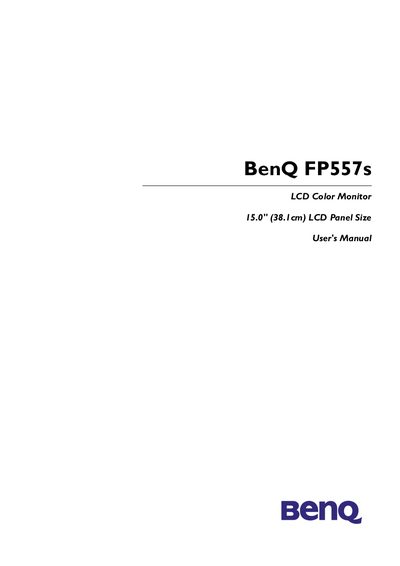

BenQ FP557s LCD Monitor User Manual
User Manual 43 pages · 3.4 MB · EN
This manual covers unpacking, hardware installation, and connection of the FP557s LCD monitor, including power and signal cables. It also explains software driver installation for Windows 95/98/2000 and details the monitor’s control panel, hot‑key functions, and menu navigation.
Additional sections describe troubleshooting steps, frequently asked questions, supported display modes, and full technical specifications such as resolution, brightness, power consumption, and environmental limits.
BenQ FP557S specifications
| Model | FP557s |
|---|---|
| Display type | 15.0" active TFT |
| Native resolution | 1024 x 768 |
| Colors | 16.2 million |
| Contrast / Brightness | 400:1 (max 500:1) / 250 cd/m² (max 260 cd/m²) |
| Power consumption (max) | 30 W |
| Operating voltage | 90‑264 V, 47‑63 Hz |
All BenQ FP557S documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum power consumption of the FP557s monitor?
The monitor consumes up to 30 W at maximum power.
What voltage range does the monitor support?
It operates on an automatic switched‑mode power supply from 90 V to 264 V at 47‑63 Hz.
