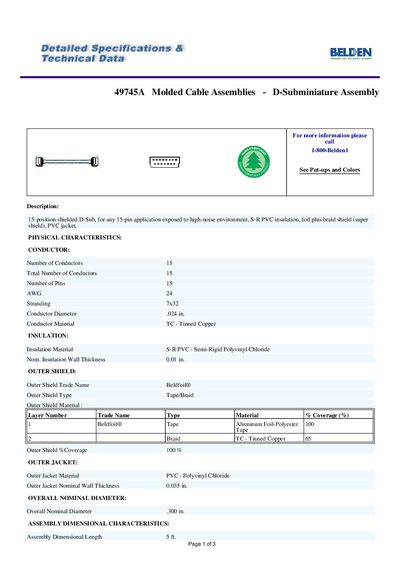

Belden 49745A Molded Cable Assemblies - D-Subminiature Assembly Product Disclosure
Product Leaflet 3 pages · 24 KB · EN
This document provides detailed technical specifications for the Belden 49745A Molded Cable Assemblies, a 15-position shielded D-Subminiature assembly designed for high-noise environments. The product features S-R PVC insulation with a foil plus braid super-shield and a PVC jacket.
Read onlineBelden 49745A specifications
| Outer Shield Type | Tape/Braid |
|---|---|
| Assembly Dimensional Length | 5 ft. |
| Connector Type | D-Sub |
| Max. Operating Voltage | 300 V RMS |
Source: Belden 49745A Molded Cable Assemblies - D-Subminiature Assembly Product Disclosure
All Belden 49745A documents by type
Product Leaflet 1
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the Belden 49745A RoHS compliant?
Yes, it is EU RoHS Compliant.
From: Belden 49745A Molded Cable Assemblies D-Subminiature Assembly Technical Data Sheet
What type of shielding does the cable have?
It has a foil plus braid shield described as super shield.
From: Belden 49745A Molded Cable Assemblies D-Subminiature Assembly Technical Data Sheet
