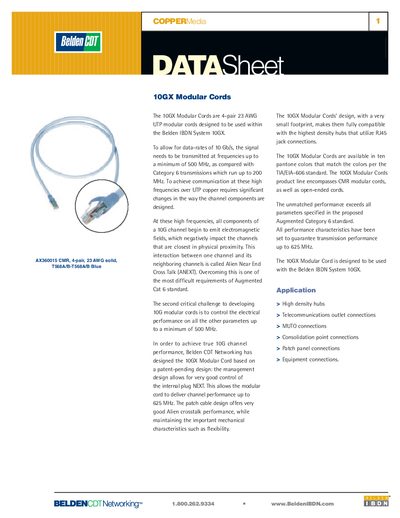

BELDEN 10GX Modular Cords AX360015 CMR 4-pair 23 AWG solid T568A/B-T568A/B Blue
The 10GX Modular Cords are 4‑pair 23 AWG solid copper UTP cables designed for use with the Belden IBDN System 10GX. They are intended for high‑density hubs, telecommunications outlet connections, MUTO connections, consolidation points, patch panels and equipment connections.
Physical characteristics include a PVC jacket, polycarbonate plug, and a nominal diameter of 6.62 mm with a minimum bend radius of 26.5 mm. Electrical performance provides a dielectric strength of 1 kV RMS, a voltage rating of 150 VAC, and a current rating of 1.5 A, delivering reliable transmission up to 625 MHz.
Belden 10GX specifications
| Conductors | 23 AWG solid copper |
|---|---|
| Insulation | PE |
| Cable Core | Four twisted pairs |
| Jacket Material | PVC |
| Plug Material | Polycarbonate |
| Durability | 1000 mating cycles |
| Contact Material | Phosphor bronze with 50 µin gold over nickel |
| Nominal Cable Diameter | 6.62 mm (0.260 in.) |
| Minimum Bend Radius | 26.5 mm (1.04 in.) |
| Dielectric Strength | 1,000 V RMS at 60 Hz for 1 min |
| Voltage Rating | 150 VAC max |
| Current Rating | 1.5 A max |
| Insulation Resistance | ≥ 500 MΩ |
| Contact Resistance | ≤ 10 mΩ |
Source: BELDEN 10GX Modular Cords AX360015 CMR 4-pair 23 AWG solid T568A/B-T568A/B Blue
