Start here

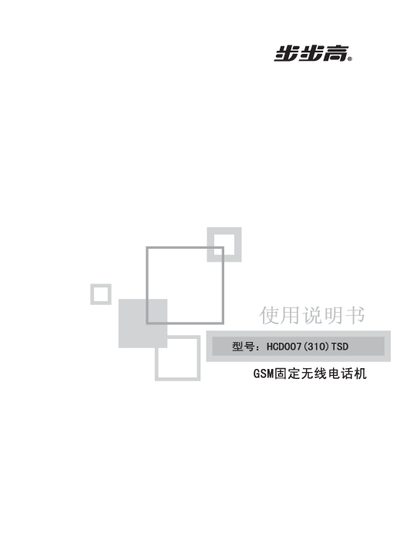

BBK HCD007 (310) TSD Telephone User Manual
This manual provides step‑by‑step instructions for installing the BBK HCD007 (310) TSD telephone, including placement, power connection, SIM card insertion, and battery charging. It also explains how to make and receive calls, use short messages, manage contacts, and configure settings such as alarms, ringtone, and display options.
Additional sections cover common problems (e.g., no sound, signal issues, battery standby) and their solutions, as well as the technical specifications of the device, safety notes, and regulatory compliance information. This manual is written in Chinese.
BBK(vivo) HCD007 specifications
| Operating Temperature | -10~+45 °C |
|---|---|
| Relative Humidity | 10%–95% |
| Atmospheric Pressure | 86–106 kPa |
| Environmental Noise | ≤60 dB |
| Working Frequency Band | 900/1800 MHz GSM (dual‑band) |
| Hands‑free Max Undistorted Power | ≈90 mW |
All BBK(vivo) HCD007 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- BBK HCD007 (310) TSD Telephone User Manual 24 p
- BBK HCD007(149)TSD 149B Intelligent Card Telephone User Manual 2 p
- BBK HCD007(148)TSDL Telephone User Manual 23 p
- BBK HCD007 (168) TSDL Telephone User Manual 17 p
- BBK HCD007(135)TSDL Telephone User Manual 10 p
- BBK HCD007(147)TSDL Telephone User Manual 8 p
- BBK HCD007 Caller ID Telephone User Manual 2 p
- BBK HCD007 (198) TSD Telephone User Manual 17 p
- BBK HCD007(118)TSDL Telephone User Manual 10 p
- BBK HCD007(102)TSDL Telephone User Manual 8 p
Questions answered in these manuals
How long can the phone operate on battery when the mains power is out?
The built‑in battery can provide up to 72 hours of standby time after a power outage, depending on network conditions.
What should I do if the phone freezes or behaves abnormally?
Remove both the power transformer and the battery, wait about 30 seconds, then reconnect them.
How can I change the password for the smart card?
Press the 【修改密碼】 key while the screen prompts “請插卡”, then follow the voice prompts to enter a new password and confirm.
From: BBK HCD007(149)TSD 149B Intelligent Card Telephone User Manual
How do I install the telephone?
Insert three AA‑size batteries, connect the handset to the terminal block, and secure the unit on a stable surface as described in the installation steps.
How can I set the local area code?
Enter the area code using the keypad and confirm with the "2" command as indicated in the pre‑use configuration section.
How do I answer an incoming call?
Pick up the handset or press the answer key to start the conversation.
