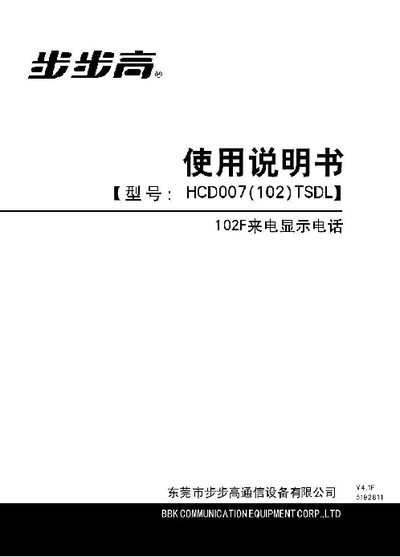

This manual describes the features of the HCD007(102)TSDL telephone, including dual‑mode FSK/DTMF caller ID, LCD display with night‑light, programmable speed‑dial, and mechanical lock for dialing restrictions. Installation steps cover connecting the handset, external line, and optional wall‑mounting, as well as battery installation.
Operational guidance covers answering calls with or without caller ID, making calls, using the R‑key for call transfer, adjusting LCD brightness, setting date/time, local area code, and automatic IP dialing. The final sections list maintenance tips, storage conditions, and a troubleshooting guide for common faults such as no ring, battery issues, and line problems. This manual is written in Chinese.
| LCD brightness levels | 5 levels |
|---|---|
| Mechanical lock | Provides dialing restriction |
| Ringer type | Electronic music ringer |
| Battery type | Two AA (5号) batteries |
| Compatible exchange voltage | 48~60 V |
| Night‑light function | LCD backlight for low light |
Press the 【亮度】 key; each press cycles through five brightness levels.
Press the 【设置】 key, then follow the prompts to adjust year, month, day, hour and minute.
Use the mechanical lock on the back of the phone; set the key to the green or yellow position to block dialing of numbers beginning with 0.
Open the battery cover, insert two AA (5号) batteries with correct polarity, and close the cover.
