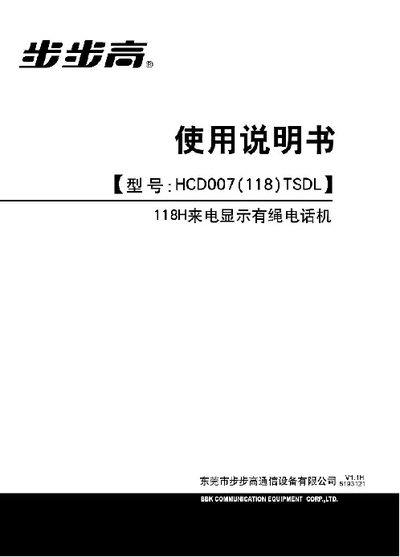

This manual provides step‑by‑step instructions for installing and using the BBK HCD007(118)TSDL telephone. It explains how to connect the handset, install the three AA batteries, and operate the handset and base unit.
The guide also details all functional features such as dual‑mode FSK/DTMF caller ID, calendar clock, speed‑dial, ringtone selection, lock settings, and how to configure date, time, area code, R‑key timing, auto‑IP and speech‑announcement functions. Troubleshooting tips and maintenance recommendations are included at the end. This manual is written in Chinese.
| Caller ID mode | FSK/DTMF dual‑mode |
|---|---|
| Ringtone options | 12 chord music ringtones + 1 normal ringtone |
| Incoming call log capacity | 36 records (number, time, date) |
| Outgoing call log capacity | 6 records (number, duration) |
| Memory numbers | 3 user‑defined numbers |
| Battery type | 3 × AA (5号) cells |
| LCD brightness levels | 5 levels |
Remove the battery cover on the bottom of the main unit, insert three AA (5号) batteries with correct polarity, and replace the cover.
Ensure the local exchange has caller‑ID service activated and that the telephone is not used as an internal extension, which may prevent the feature.
Press the 【设置/存贮】 key, then use the up/down keys to adjust year, month, day, hour and minute as indicated on the LCD.
Rotate the mechanical lock key to the green or yellow position; the LCD will show a “人” symbol indicating the lock is active.
