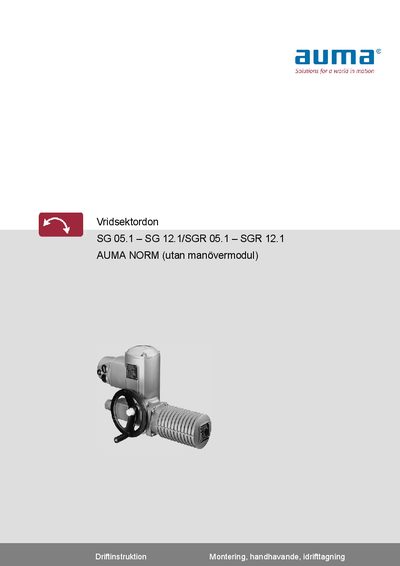

AUMA SG 05.1/SG 12.1/SGR 05.1/SGR 12.1 Operation Manual
This manual provides safety instructions, identification details, and guidelines for transport, storage and packaging of the AUMA rotary actuators. It explains the required safety precautions, the applicable standards and the documentation that must accompany the product throughout its lifetime.
The document covers mounting, electrical connection, manual and motor operation, commissioning, troubleshooting, technical data and spare‑parts information. It also includes specific requirements for use in explosive atmospheres (ATEX zone 22) and the IP‑rating of the devices. This manual is written in Swedish.
AUMA SG 05.1 - SG 12.1 specifications
| IP Rating | IP67 / IP68 |
|---|---|
| Explosion Protection Zone | ZON 22 (ATEX 94/9/EG) |
| Power Connection Type | AUMA round plug |
Source: AUMA SG 05.1/SG 12.1/SGR 05.1/SGR 12.1 Operation Manual
All AUMA SG 05.1 - SG 12.1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the IP rating of the SG series actuator?
The actuator is protected with an IP rating of either IP 67 or IP 68.
From: AUMA SG 05.1/SG 12.1/SGR 05.1/SGR 12.1 Operation Manual
Can the actuator be used in explosive atmospheres?
Yes, the actuator is approved for use in zones with explosive dust atmospheres (ZON 22) according to ATEX‑directive 94/9/EG.
From: AUMA SG 05.1/SG 12.1/SGR 05.1/SGR 12.1 Operation Manual
What is the standard swing angle range for the SG 05.1‑SG 12.1 actuator?
The standard swing angle is 80° to 110°, and it can be adjusted within the minimum and maximum limits.
What ambient temperature limits are recommended for operation?
The actuator is rated for ambient temperatures from –25 °C to +70 °C (optional –40 °C to +60 °C for low‑temperature versions).
