Key facts
- Brand
- ASRock
- Model
- K7VM3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-15
Start here

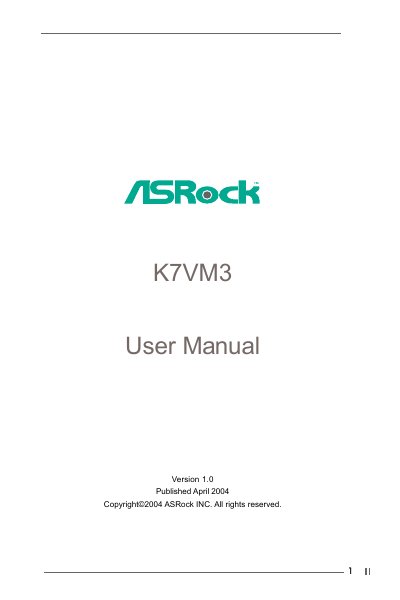

ASRock K7VM3 Motherboard User Manual
This manual introduces the ASRock K7VM3 Micro ATX motherboard, its package contents, specifications, layout, and the ASRock I/OTM features. It also outlines the document’s scope, copyright, and disclaimer information.
The guide covers detailed installation procedures, CPU and heatsink mounting, memory and peripheral connections, BIOS setup options, security and power configurations, as well as software support and troubleshooting tips.
ASRock K7VM3 specifications
| Form factor | Micro ATX (9.6" x 7.5", 24.4 x 19.1 cm) |
|---|---|
| CPU socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
| North Bridge chipset | VIA KM266Pro, FSB@200/266/333 MHz |
| South Bridge chipset | VIA VT8235 (USB 2.0, ATA 133) |
| Memory slots | 2 DDR DIMM slots, DDR1/DDR2 PC2100/PC2700, max 2 GB |
| IDE support | 2 IDE connectors, ATA133 / Ultra DMA Mode 6 |
| USB ports | 4 rear USB 2.0 ports + header for 2 additional ports |
| Audio | 5.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN |
| Expansion slots | 2 PCI, 1 AMR, 1 AGP (1.5 V, 4X) |
All ASRock K7VM3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many USB 2.0 ports are provided on the K7VM3 motherboard?
The board has four rear USB 2.0 ports and a header that can add two more USB 2.0 ports.
What CPU socket does the K7VM3 motherboard use?
It uses a Socket A (462‑pin) socket for AMD Athlon, Athlon XP, and Duron processors.
What type of CPU socket does the K7VM3 motherboard use?
It uses a 462‑pin Socket A that supports AMD Athlon, Athlon XP, and Duron processors.
How many USB 2.0 ports are provided on the motherboard?
The board provides four default USB 2.0 ports.
