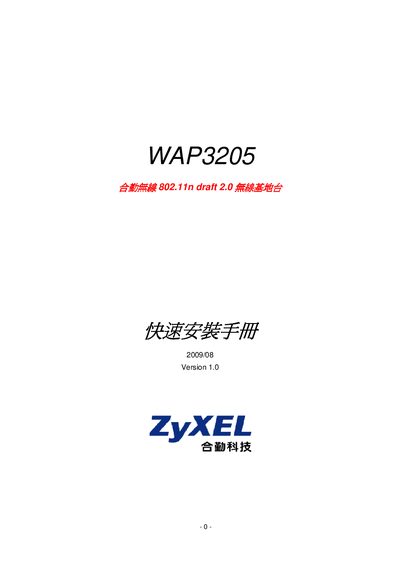

This quick installation guide provides setup steps, hardware connections, and troubleshooting for the Zyxel WAP3205 wireless base station.
The guide introduces Zyxel Technology and the WAP3205 wireless base station, presenting product specifications, packaging contents, hardware component descriptions, and safety notes before installation. It then walks the user through hardware connections, computer-side configuration for Windows 2000/XP and Vista, browser settings, and final product configuration including WPS and wireless modes.
Additional sections cover advanced features such as WPS setup, WEP encryption, and a comprehensive FAQ that helps resolve common issues like connection problems, resetting to factory defaults, and power supply requirements. This manual is written in Chinese.
| LAN ports | 2 x 10/100Mbps |
|---|---|
| WPS button | 1 button |
| Power input | 100~240V / 50~60Hz, 0.3A |
| Power output | 12VDC / 1A |
| WEP encryption | 64/128‑bit, HEX or ASCII |
| WPA/WPA2 encryption | Supported |
| Antennas | 2 detachable 2 dBi omnidirectional antennas |
Press and hold the Reset button for about 10 seconds until the power LED turns off, then release; the device will reset and the power LED will stay solid green when complete.
The device accepts an input voltage of 100‑240 V at 50‑60 Hz, 0.3 A and provides a 12 V DC output at 1 A.
