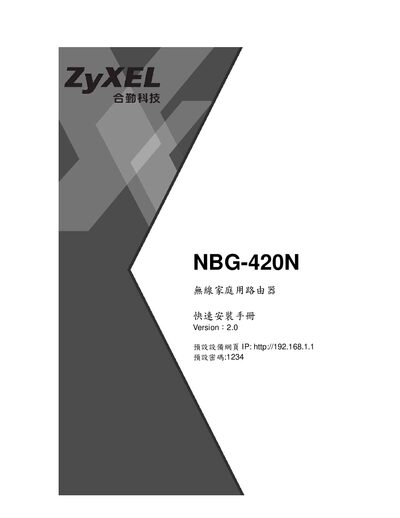

This quick installation guide shows how to set up the Zyxel NBG-420N wireless router, including hardware connections, web interface configuration, and…
The guide provides an overview of the NBG-420N wireless router, its hardware specifications, supported wireless standards, and key features such as WPS, UPnP, and DHCP. It also lists the contents of the product package and explains the meaning of the status LEDs.
Step‑by‑step installation instructions cover connecting the LAN/WAN ports, powering the device, accessing the default web interface (http://192.168.1.1), and configuring wireless settings for Windows, Vista, and Windows 7. The document finishes with a troubleshooting section that addresses common connection problems and how to reset the router to factory defaults. This manual is written in Chinese.
| LAN ports | 4 x 10/100Mbps |
|---|---|
| WAN port | 1 x 10/100Mbps |
| Power supply | 12 V DC / 1 A |
Press and hold the Reset button for about 6‑10 seconds until the power LED turns off and then the green LED stays on; the router will be restored to its original settings.
The default address is http://192.168.1.1.
The router provides four 10/100 Mbps LAN ports.
