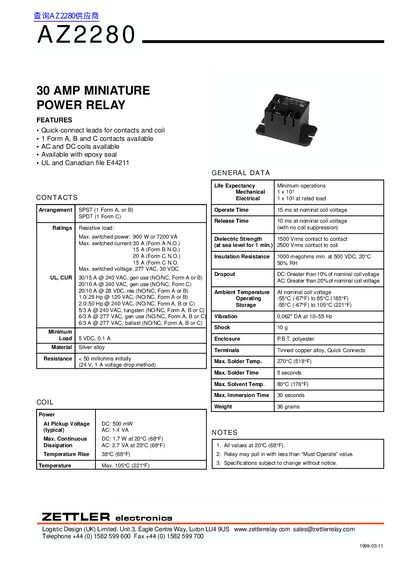

Technical datasheet for the ZETTLERelectronics AZ2280 miniature power relay, detailing ratings, coil specifications, and mechanical data.
This document is a datasheet for the ZETTLERelectronics AZ2280 miniature power relay. It provides comprehensive specifications including contact arrangements (SPST, SPDT), electrical ratings for resistive, motor, and tungsten loads, and general data such as life expectancy and dielectric strength.
| Max. switched power (Resistive load) | 900 W or 7200 VA |
|---|---|
| Max. switched current (Form A N.O.) | 30 A |
| Max. switched voltage | 277 VAC, 30 VDC |
| Contact Resistance | < 50 milliohms |
| Mechanical Life Expectancy | 1 x 10^7 operations |
| Electrical Life Expectancy | 1 x 10^5 operations |
| Weight | 36 grams |
| Operating Temperature | -55°C to 85°C |
| Dielectric Strength (contact to contact) | 1500 Vrms |
The relay is available with SPST (1 Form A, or B) and SPDT (1 Form C) contact arrangements.
The maximum continuous DC power dissipation is 1.7 W at 20°C.
Add the suffix 'E' to the order number to specify an epoxy sealed version.
