The document describes the features and characteristics of a microminiature polarized relay, including life expectancy, operate time, release time, bounce, capacitance, dielectric strength, dropout, insulation resistance, ambient temperature, vibration, and shock. The relay complies with IEC60950/UL60950/EN60950 standards and has high breakdown voltage and supplementary insulation.

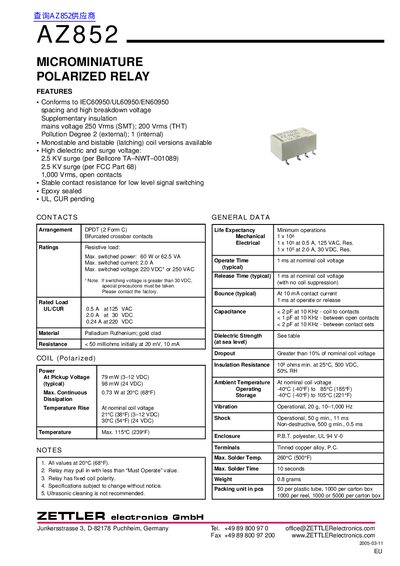

This document is a technical datasheet for the ZETTLER Electronics AZ852 series of microminiature polarized relays. It provides detailed specifications for both non-latching (monostable) and bistable (latching) coil versions, including electrical ratings such as contact arrangement (DPDT), maximum switched current, and voltage capabilities.
The datasheet includes comprehensive mechanical data with dimensions for narrow version packages featuring Gull Wings or J-Legs. It also details packaging specifications for Surface Mount Technology (SMT) tape and reel formats and Through-Hole Technology (THT) tube packaging.
| Contact Arrangement | DPDT (2 Form C) |
|---|---|
| Max. Switched Current | 2.0 A |
| Weight | 0.8 grams |
| Operating Temperature Range | -40°C to +85°C |
The AZ852 is available in both monostable and bistable (latching) coil versions.
The typical operate time at nominal coil voltage is 1 ms.
