AZ957 is an SPDT switch produced by ZETTLER. The maximum switching voltage is 60 VDC or 125 VAC, and the maximum switching current is 1 A continous 2 A (30 s, 50% duty).

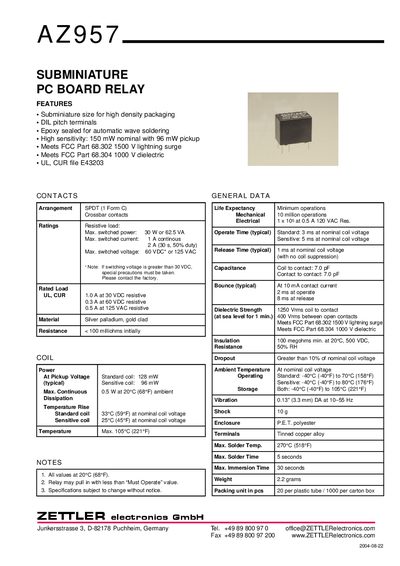

This document is a technical datasheet for the ZETTLER AZ957 series of subminiature PC board relays. The device features DIL pitch terminals and epoxy sealing suitable for automatic wave soldering. It meets FCC Part 68 requirements for lightning surge and dielectric strength.
| Contact Arrangement | SPDT (1 Form C) |
|---|---|
| Max. Switched Power | 30 W or 62.5 VA |
| Dielectric Strength | 1250 Vrms coil to contact |
| Operating Temperature Range | -40°C to 70°C (Standard) |
The typical operate time is 3 ms at nominal coil voltage.
The contacts are made of silver palladium, gold clad.
