Technical parameters of AZ833 relay, including rated load, contact structure, coil voltage, life, working temperature, etc.

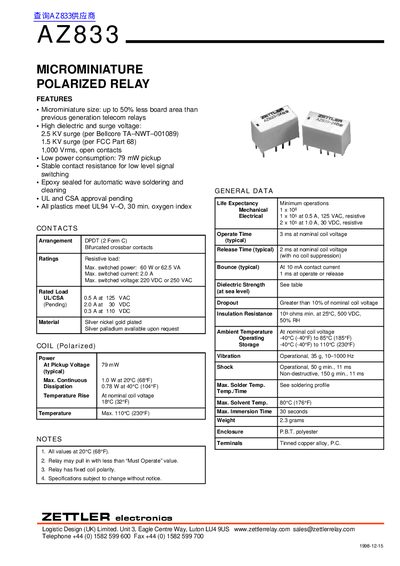

This document provides technical specifications for the Zettler Electronics AZ833 series of microminiature polarized relays. Key features include a compact size requiring up to 50% less board area than previous generations, high dielectric strength, and low power consumption with typical pickup power of 79 mW.
| Dielectric Strength (Surge) | 2.5 KV surge (Bellcore) / 1.5 KV surge (FCC) |
|---|---|
| Power Consumption | 79 mW pickup |
| Contact Arrangement | DPDT (2 Form C) |
| Max Switched Current | 2.0 A |
| Operating Temperature Range | -40°C to 85°C |
| Weight | 2.3 grams |
The typical operate time is 3 ms at nominal coil voltage.
Yes, it is epoxy sealed specifically for automatic wave soldering and cleaning.
