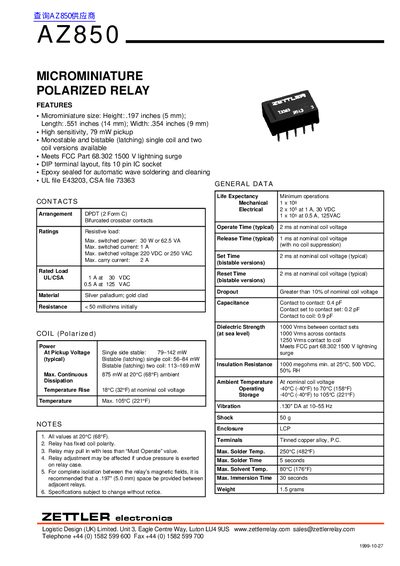

This document describes the features and characteristics of ZETTLER electronics' AZ850 microminiature polarized relay, including small size, high sensitivity, options of monostable and bistable versions, compliance with FCC Part 68.302 1500 V lightning surge, etc.
This document is a technical datasheet for the Zettler Electronics AZ850 series of microminiature polarized relays. The device features a compact size of 14mm x 9mm x 6mm and offers both single-coil monostable and bistable (latching) configurations, as well as two-coil versions.
| Dimensions (L x W x H) | .551 inches (14 mm) x .354 inches (9 mm) x .197 inches (6 mm) |
|---|---|
| Contact Arrangement | DPDT (2 Form C) |
| Max. Switched Current | 1A |
| Max. Switched Voltage (DC) | 220 VDC |
| Operating Temperature Range | -40°C to 70°C |
| Max. Solder Temp. | 250°C |
The typical operate time is 2 ms at nominal coil voltage.
Yes, it meets FCC Part 68.302 1500 V lightning surge standards.
The maximum temperature rise is 18°C (32°F) at nominal coil voltage.
