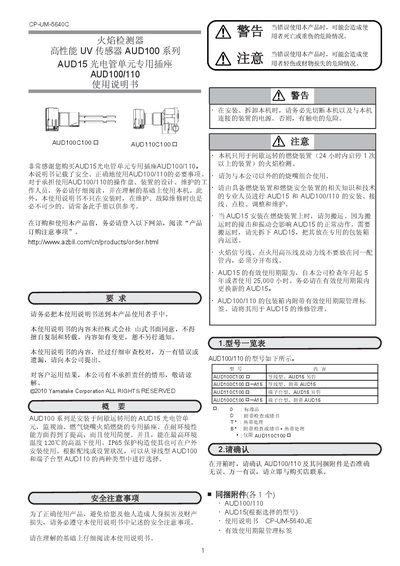

Installation, wiring, operation and maintenance guide for the Yamatake AUD100/110 flame detector.
This manual provides safety instructions, installation steps, wiring diagrams, adjustment procedures and maintenance tasks for the AUD100/110 flame detector, which uses the AUD15 UV phototube unit. It is intended for qualified personnel who design, install or service intermittent‑operation combustion equipment.
Key topics include safety precautions, connection of signal, ignition and power lines, recommended mounting angles, inspection of flame current/voltage, and replacement of the AUD15 phototube. Technical specifications such as operating temperature range, IP rating, insulation resistance and wiring details are also listed. This manual is written in Chinese.
| Operating temperature range | -20 °C to +120 °C |
|---|---|
| Protection rating | IP65 |
| Weight | ≈120 g |
| Cable length | ≈1800 mm |
| Wire gauge | AWG #18 (≈1.2 mm²) |
| Maximum allowable pressure | 35 kPa |
| Vibration resistance | ≤5 m/s² (10‑55 Hz) |
| Mounting screw torque | 0.98 N·m |
The detector can be used up to 120 °C.
The power to the detector and any connected equipment must be switched off.
It is rated for 5 years or 25 000 hours of use.
The screw should be tightened to 0.98 N·m.
