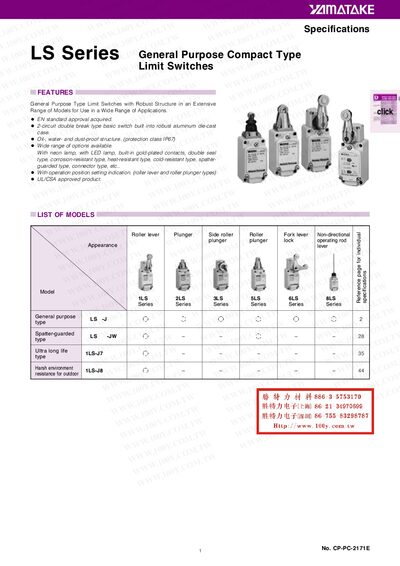

Technical specifications, options and performance data for the CP-PC-2171ELS series general‑purpose compact limit switches.
The CP‑PC‑2171ELS series offers a wide range of general‑purpose compact limit switches with robust aluminum die‑cast construction and IP67 protection. Models include roller lever, plunger, side‑roller plunger, fork‑lever lock and non‑directional types, each available with optional LED or neon lamps, double‑seal, corrosion‑resistant, heat‑ or cold‑resistant options.
The switches meet international standards (UL/CSA, EN 60947‑5‑1, CE) and provide detailed electrical and mechanical performance data, connector options, and life‑cycle ratings for both standard and low‑current loads.
| Protection class | IP67 |
|---|---|
| Operating voltage (LED lamp) | 12 to 125 Vac/dc |
| Operating voltage (neon lamp) | 100/200 Vac |
| Contact resistance (standard load) | Max. 50 mΩ |
| Insulating resistance | Min. 100 MΩ |
| Dielectric strength (between contacts) | 1 kV for 1 min |
| Operating temperature range (standard) | ~10 °C to +70 °C |
| Maximum operating frequency | 1,800 operations/h |
They are rated IP67, providing dust‑tight and water‑proof protection.
The standard load contact resistance is limited to a maximum of 50 mΩ.
The heat‑resistant type can operate from about 10 °C up to +120 °C.
